Hyundai Equus: B Pillar Garnish Repair procedures - Body Side Molding - Body (Interior and Exterior) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: B Pillar Garnish Repair procedures

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Body Side Molding / B Pillar Garnish Repair procedures

Replacement
[B Pillar upper garnish]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Take care not to scratch the body surface.
1.

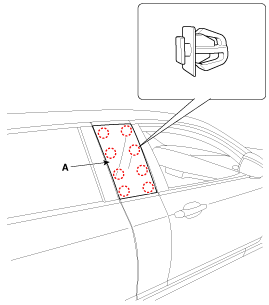

Using a screwdriver or remover, remove the B pillar upper garnish (A).

2.
Disconnect the rubber (A) screw loose.

3.
Install in the reverse order of removal.

•
Replace any damaged clips.
•
Integrated silicon coating on the surface of the tube. (MS261-13)
[B Pillar lower garnish]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Take care not to scratch the body surface.
1.
Remove the canter pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Using a screwdriver or remover, remove the B pillar upper garnish (A).

3.
Disconnect the rubber (A) screw loose.

4.
Loosen the mounting nuts, remove the B pillar lower garnish (A).

5.
Install in the reverse order of removal.

•
Replace any damaged clips.
•
Integrated silicon coating on the surface of the tube. (MS261-13)
