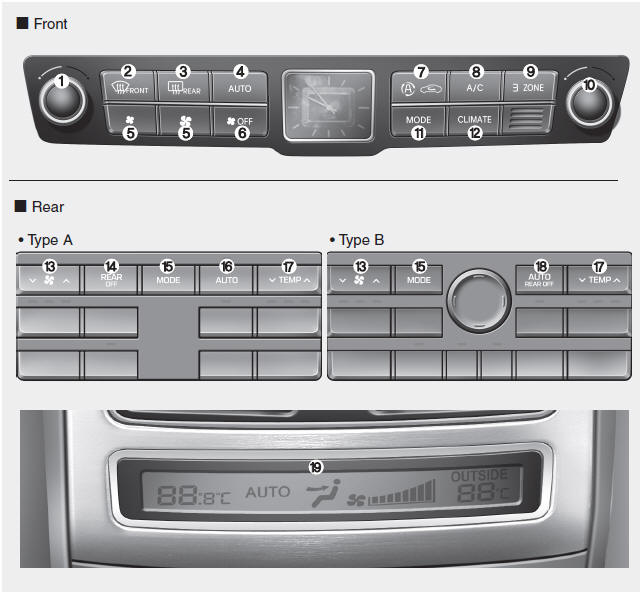

1. Driver’s temperature control knob
2. Front windshield defrost button
3. Rear window defrost button
4. AUTO (automatic control) button
5. Fan speed control button
6. OFF button
7. Air intake control button / AQS (Air quality system) button
8. Air conditioning button
9. 3 zone (Driver, passenger and rear side) control button
10. Passenger’s temperature control knob
11. Mode selection button
12. Climate information screen selection button
13. Fan speed control button
14. Off button (Rear)
15. Mode selection button (Rear)
16. AUTO (automatic control) button
17. Rear side temperature control button
18. AUTO (automatic control) or off button
19. LCD display
