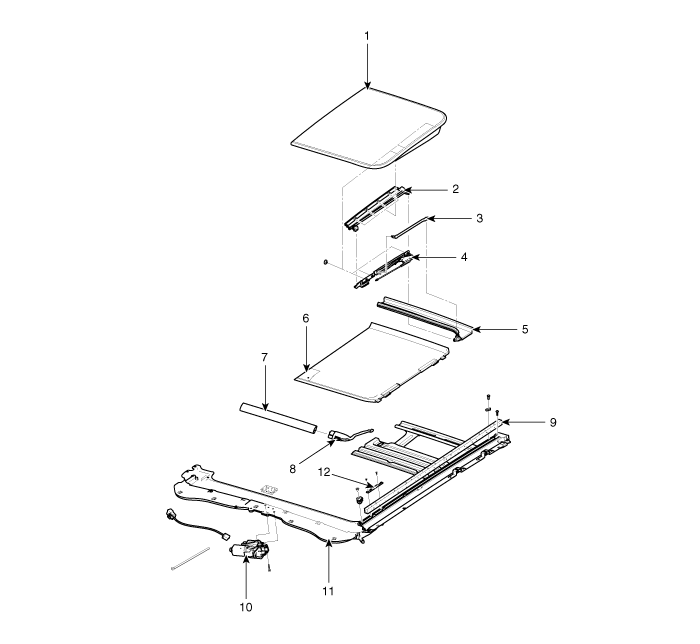

| Components |
| 1. Glass panel 2. Decoration cover 3. Drip link 4. Guide assembly 5. Drip rail 6. Sunshade | 7. Defector 8. Defector link 9. Seal tape 10. Motor 11. Frame 12. Set plate |
Sunroof
...
Repair procedures
Adjustment
Inspect Sunroof Alignment
1.
Adjust the difference between the height of the glass roof panel (A) and glass weatherstrip (B).
Standard value [mm(in.)] :
Front edge : - 0.2 (- 0.00 ...
