Hyundai Equus: Door Scuff Trim Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Components and Components Location

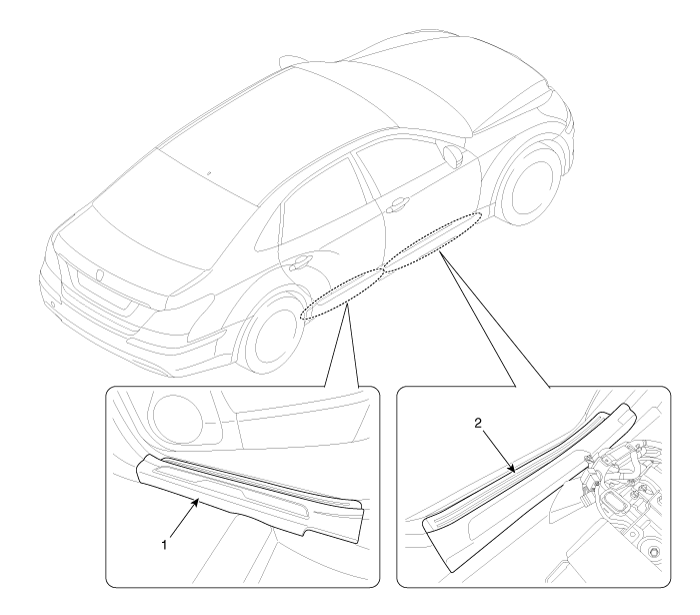

| Component Location |
| 1. Front door scuff trim | 2. Rear door scuff trim |
Components and Components Location
Components
1. Cowl side trim2. Front door scuff trim3. Center pillar lower trim4. Rear door scuff trim5. Rear pillar trim6. Rear wheel house trim7. Rear package tray trim 8. Front pillar trim
...
Door Scuff Trim Repair procedures
Replacement
[Front Door Scuff Trim]
•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with
protect ...
