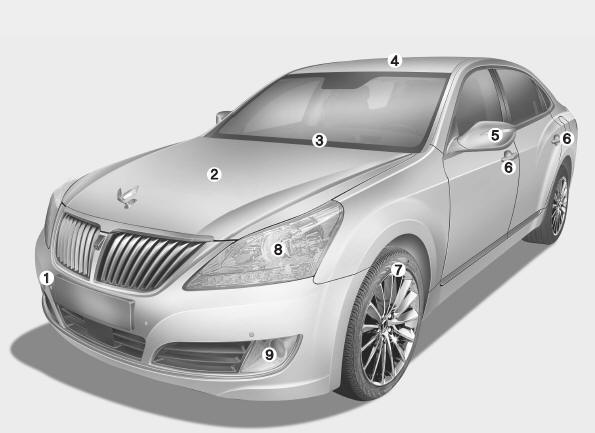

1. Towing hook
2. Hood
3. Front windshield wiper blades
4. Sunroof
5. Outside rearview mirror
6. Door locks
7. Tires and wheels
8. Headlamps
9. Front fog light

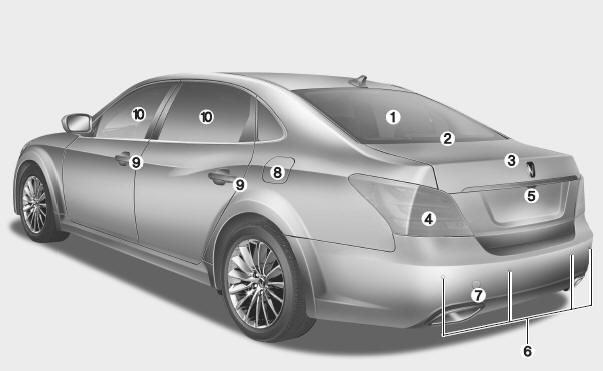

1. Glass antenna and Defroster
2. High mounted stop light
3. Trunk
4. Rear combination light
5. Rearview camera
6. Parking assist system
7. Towing hook
8. Fuel filler lid
9. Door locks
10. Window
Cluster Fascia Panel Repair procedures
Replacement
•
Put on gloves to protect your hands.
•
When prying with a flat-tip screwdriver, wrap it with
protective tape, and apply prote ...
In-car Sensor Repair procedures
Inspection
1.
Turn the ignition switch ON.
2.
Blow warm air into the in-car sensor air inlet. Measure the sensor resistance between 1 and 3 terminals.
1. Sensor Ground 2. Motor (-)3. Incar ...
Components and Components Location
Components Location
1. Head Up Display (HUD)2. HUD switch3. Cluster4. Haptic steerign switch5. Windshield glass (Wedge film applied)6. Light sensor
...
