| Description |

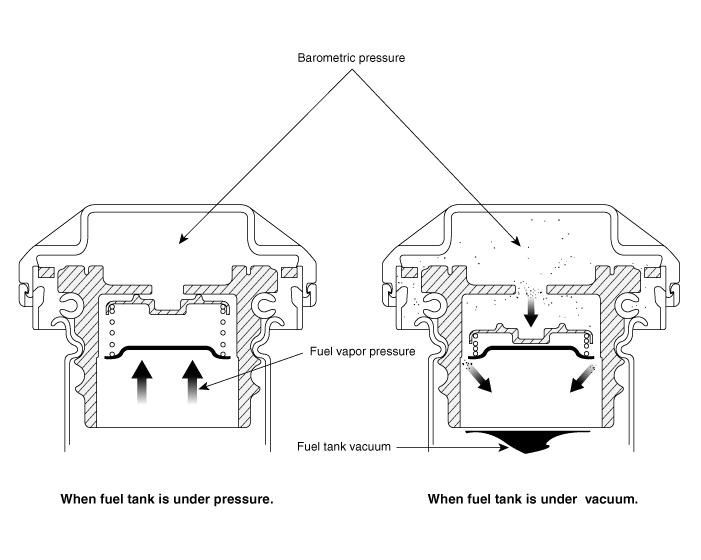

A ratchet tightening device on the threaded fuel filler cap
reduces the chances of incorrect installation, which would seal the fuel
filler. After the gasket on the fuel filler cap and the filler neck
flange contact each other, the ratchet produces a loud clicking noise
indicating the seal has been set.
Canister Repair procedures
Removal
1.
Turn the ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the service cover (A).
3.
Disconnect the fuel tank pressure sensor connector (A) and the ...
Fuel Tank Air Filter Repair procedures
Replacement
1.
Turn the ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the service cover (A).
3.
Disconnect the canister close valve connector (A).
4.
Di ...
