Hyundai Equus: Heater Control Unit Repair procedures
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Heating, Ventilation and Air Conditioning / Controller / Heater Control Unit Repair procedures
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Heating, Ventilation and Air Conditioning / Controller / Heater Control Unit Repair procedures
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the cowl side trim.
(Refer to Body - "Cowl Side Trim") |
| 3. |
To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down.
|
| 4. |
Disconnect the under lamp connector (A).
|
| 5. |
Remove the stopper (B) from the glove box (A).
|
| 6. |
Disconnect the air damper (A) from the glove box (B).
|
| 7. |
Remove the glove box housing (A) after loosening the mounting screws and nuts.
|
| 8. |
Disconnect the glove box lamp connector (A).
|
| 9. |
Remove the passenger's side shower duct (A).
|
| 10. |

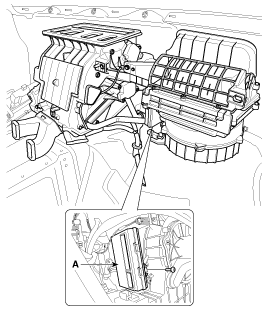

Unscrew the mounting srcrews and then remove the control unit (A).
|
| 11. |
Install in the reverse order of removal. |
