1. Turn the engine off.

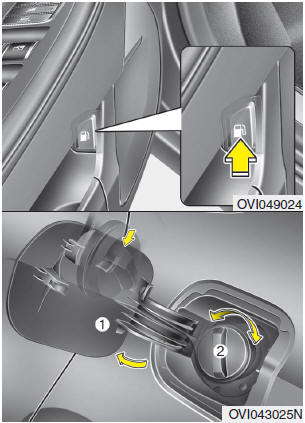

2. Push the fuel filler lid opener button located on the driver’s door. Then the
fuel filler lid slowly open (1).
3. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a hissing
noise as the pressure inside the tank equalizes.
4. Place the cap on the fuel filler door.
Front Strut Assembly Components and Components Location
Components
1. Insulator cap2. Insulator assembly3. Spring upper pad4. Dust cover 5. Bump stopper6. Coil spring7. Spring lower pad8. Shock absorber
...
Front Wiper Motor Components and Components Location
Components
1. Nut cap2. Nut3. Wiper arm4. Wiper blade5. Cowl top cover braket6. Cowl top cover7. Washer bolt8. Wiper motor & linkage assembly
...
Description and Operation
Description
The ECM (Electro Chromic inside rear view Mirror) is for
dimming the reflecting light from a vehicle behind at night, in order
the user not to be dazzled by the light. The front loo ...
