Hyundai Equus: Schematic Diagrams - Parking Guide System (PGS) - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Schematic Diagrams

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body Electrical System / Parking Guide System (PGS) / Schematic Diagrams

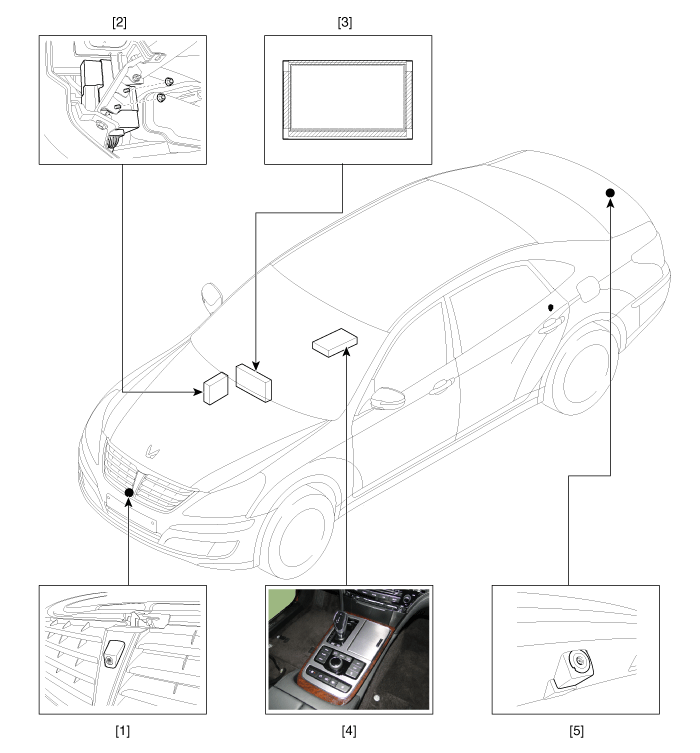

System Diagram

1. Front view camera
2. PGS Unit
3. AVN monitor (LCD)
4. Front blind camera switch
5. Rear view camera

Block Diagram & Communications

Category
Role
Voltage
I/O
Ignition Power
· Routes power to PGS.
IGN ON: 12
VIGN OFF: 0V
Input
Blind Switch
· Controls the rear view camera (by controlling whether or not the rear view camera feed is displayed on screen).· Rear view camera is activated whenever the A/T lever is in R gear.
NORMAL: 12
VPUSH: 0V
Input
Power Train CAN
· Steering angle, velocity, and inhibitor switch data.

Input
Multimedia CAN
· DIS: Shares parking direction and parking stage-specific status info.· AVN: Sends and receives forward view camera, rear view camera, and camera deactivation commands.

Input
Camera Power
· Camera operation power
While transmission is in neutral,voltage between camera powersupply and ground is measured tobe 6.5V.
Output
Camera Ground
Camera View Change
· Provides a virtual top view using the standard rear view camera feed.
Serial Communication Line
Output

    Parking Guide System (PGS)
    ...

    Description and Operation
    Description Control Function This system supports 3 kinds of main function.(Front/Rear video display function, Expected trace of wheels display function, Parking guide function) The Front/Rea ...
