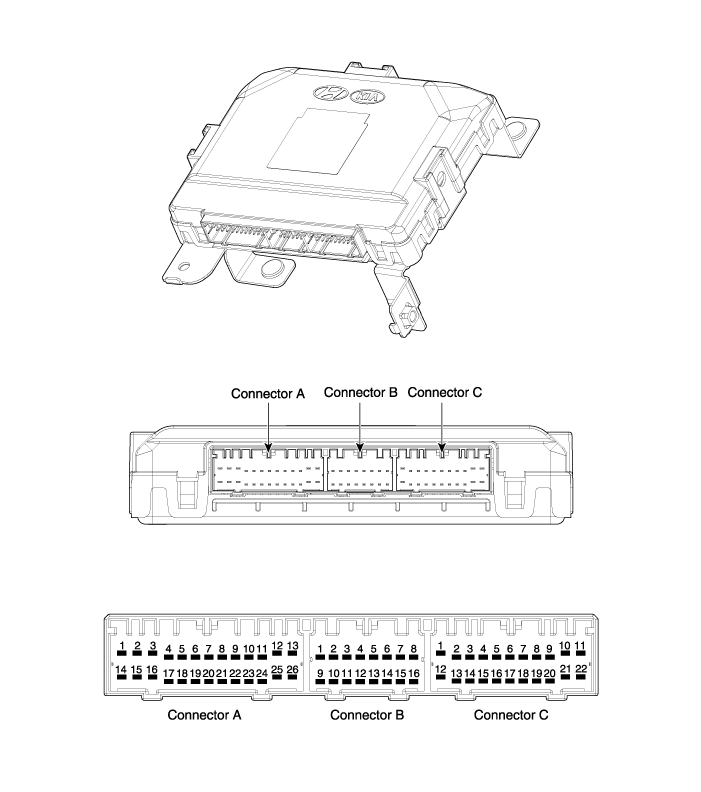

Components |
No. | Connector A | Connector B | Connector C |
1 | V_BAT load | C_CAN Low | SSB illumination ground |
2 | - | C_CAN High | - |
3 | Power ground1 | - | SSB LED OFF |
4 | IGN1 | - | Interior antenna #2 power |
5 | IGN1 relay | Brake switch | Interior antenna #1 power |
6 | ACC | Immobilizer antenna power | - |
7 | IGN2 | - | Interior antenna #3 (hat shelf) |
8 | SSB switch2 | Wheel speed | Interior antenna #4 (Trunk) |
9 | RDRV toggle button | Driver toggle button | Bumper antenna power |
10 | RF COM | - | Passenger side antenna power |
11 | - | - | Driver side antenna power |
12 | B_CAN High | P position/ Clutch switch | SSB LED IGN |
13 | B_CAN Low | Start feedback | SSB illumination power |
14 | V_BAT CPU | Immobilizer antenna ground | - |
15 | - | - | Interior antenna #2 ground |
16 | Power ground2 | SSB LED ACC | Interior antenna #1 ground |
17 | Starter relay | x | - |
18 | IGN2 relay | Interior antenna #3 (hat shelf) power | |
19 | ACC relay | Interior antenna #3 (Trunk) power | |
20 | - | Bumper antenna ground | |
21 | - | Passenger side antenna ground | |
22 | RAST toggle button | Driver side antenna ground | |
23 | RPM | x | |
24 | EMS COM | ||
25 | SSB switch1 | ||
26 | Assistant toggle button |
