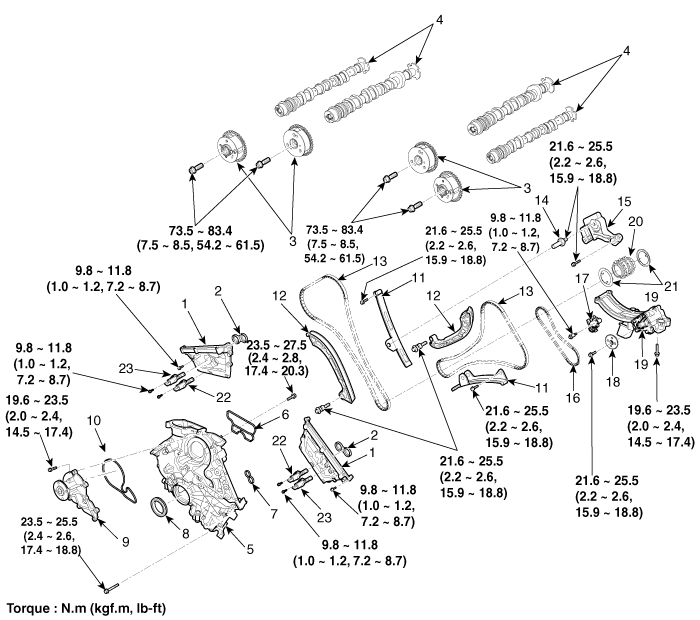

| Components |
| 1. Timing chain upper cover 2. Timing chain upper cover gasket 3. CVVT assembly 4. Camshaft 5. Timing chain lower cover 6. Timing chain lower cover gasket(#1) 7. Timing chain lower cover gasket(#2) 8. Timing chain lower cover oil seal | 9. Water pump 10. Water pump gasket 11. Timing chain guide 12. Timing chain tensioner arm 13. Timing chain 14. Timing chain guide bolt 15. Tensioner adapter 16. Oil pump chain | 17. Oil pump chain tensioner 18. Oil pump sprocket 19. Oil pump assembly 20. Crankshaft sprocket 21. Friction plate 22. Intake OCV & filter assembly 23. Exhaust OCV & filter assembly |
