Hyundai Equus: Troubleshooting
| Troubleshooting |
| - |
Characteristics of EM Wave : EM Waves are reflected against
all material and especially metal very well. Reflections of EM Waves are
varies with the shape of object. (x EM : Electro Magnetic) |
| - |
Radar Sensor : Radar Sensor sense the car by 24GHz echo signal. |
| - |

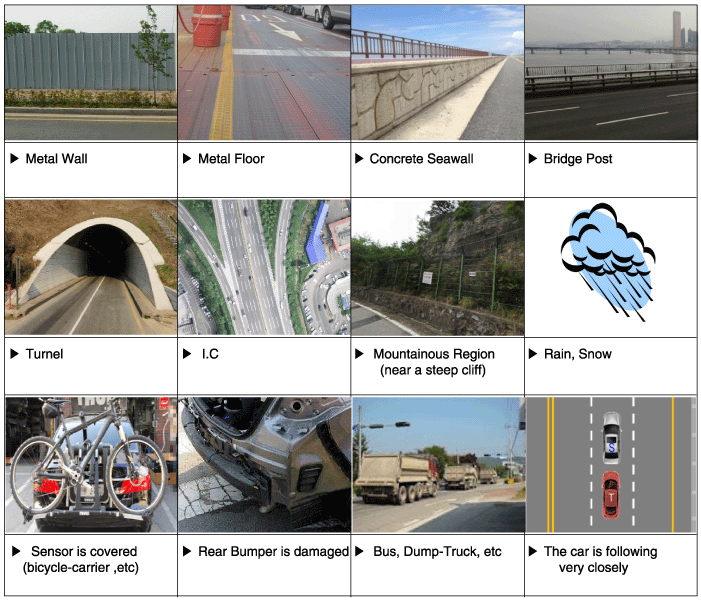

Special enviroment make the 'False-Alarm' occurrence because of EM waves. |
Blind Spot Detection Indicator Repair procedures
Removal
Blind Spot Detection Warnig Indicator
1.
Disconnect the negative (-) battery terminal.
2.
Remove the mirro (A).
Installation
Blind Spot Detection Warnig Indicator
1.
Install the ...
