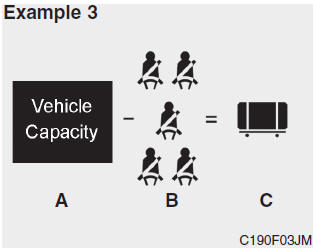

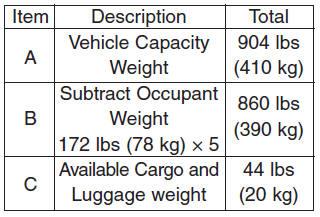

Refer to your vehicle’s tire and loading information label for specific information about your vehicle's capacity weight and seating positions.
The combined weight of the driver, passengers and cargo should never exceed your vehicle's capacity weight.
