Hyundai Equus: Around view monitoring system (AVM) (If equipped)

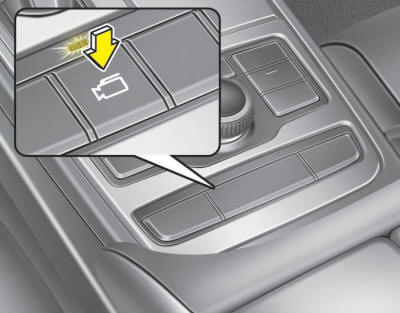

This is the parking support system to show around circumstance when you park
the vehicle in monitor. When you push the button in [ON] position, it is operated.
To cancel the system, push again.
Operating conditions
- When ignition is ON
- When the transaxle is on D, N or R
- When the vehicle speed is not over 12.4 mph (20km/h)
- When the vehicle speed is over 20km/h, the AVM system is turned off. If
the vehicle speed is not over 20km/h after turning off the AVM by over speed,
the AVM is not turned on. To operate again, push the button.
- When the vehicle moves backwards, regardless of On/Off of button and vehicle
speed, the AVM is operated. And then, if you shift to the D position and the
driving speed is over 6.2 mph (10km/h) the AVM is deactivated.
- When the trunk and driver/passenger door are opened and the outside mirror
is folded, the warning is illuminated in AVM system.
- If the AVM system is not normally operated, we recommend that you contact
an authorized EQUUS dealer.
The rearview camera will activate when the back-up light is ON with the ignition
switch ON and the shift lever in the R position.
This system is a supplemental system that shows behind ...
