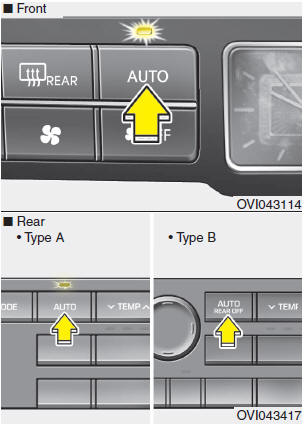

1. Press the AUTO button.
The modes, fan speeds, air intake and air-conditioning will be controlled automatically according to the temperature setting.

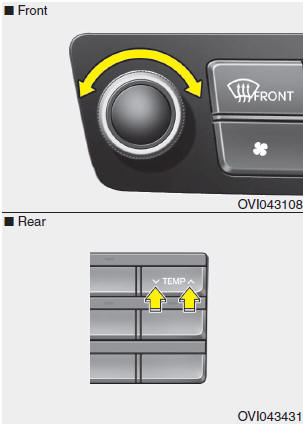

2. Press the TEMP button to set the desired temperature.
✽ NOTICE
- Mode selection button
- Front windshield defrost button
- Fan speed control button
The selected function will be controlled manually while other functions operate automatically.
✽ NOTICE

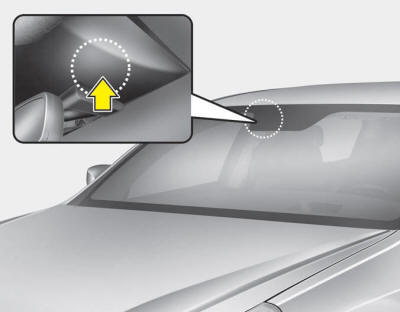

Never place anything near the sensor to ensure better control of the heating and cooling system.
Schematic Diagrams
Circuit Diagram (1)
Circuit Diagram (2)
Circuit Diagram (3)
SRSCM Connector terminal
No.Function (Connector A)No.Function (Connector B)1-1Rear Side Air Bag RH (Low)2Driver Knee Air Bag (Low)2R ...
Troubleshooting
Trouble Symptom Charts
Trouble Symptom 1
Trouble Symptom 2
Trouble symptomProbable causeRemedyThe set vehicle speed varies greatly upward or downward"Surging" (repeated alternating accelera ...
Air Lumber Support Switch Repair procedures
Inspection
1.
Disconnect the negative(-) battery terminal.
2.
Remove the shield outer cover.
(Refer to Body - "Front Seat Shield Outer Cover")
3.
Disconnect the power seat air lumber supp ...
