Replacement
[Center Pillar Lower Trim]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
2.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
3.
Slighty remove the front door body side weatherstrip.
4.
Slighty remove the rear door body side weatherstrip.
5.

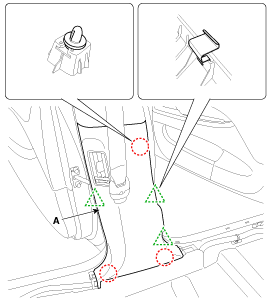

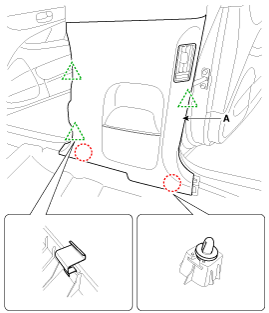

Using a screwdriver or remover, remove the center pillar lower trim (A).
[Sadan]

[Limousine]

6.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damage clips.
[Center Pillar Upper Trim]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the safety belt (A) by turning it in the direction of arrow using a flathead screwdriver(-).
[Passenger's]

3.

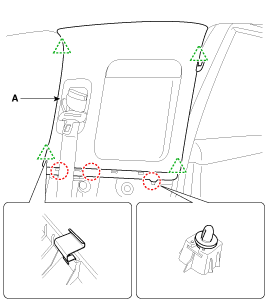

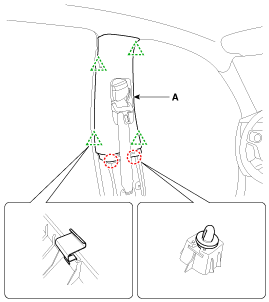

Using a screwdriver or remover, remove the center pillar upper trim (A).
[Sadan]

[Limousine]

4.
Install in the reverse order of removal.

•
Replace any damage clips.
