| Adjustment |
Calibration procedure
If the display read "C", calibrate the compass.
| 1. |
Driving the vehicle in a circle at less than 8km/h 3 times or until the compass heading appears. |
| 2. |
Driving in a circle in right-handed direction and opposite
direction are possible, and if the calibration is completed, the compass
heading will appear. |
| 3. |
Keep driving in a circle until a commpass heading appears. |
To adjust the Zone setting :
| 1. |
Determine the desired zone number based upon your current location on the zone maps. |
| 2. |
Press and hold the Feature Control button for more than 6 but
less than 9 seconds, the current zone number will appear on the display
(B). |
| 3. |
Pressing and holding the feature control button (A) again
will cause the numbers to increment (Note: they will repeat …13, 14,
15, 1, 2,..). Releasing the button when the desired zone number appears
on the display will set the new zone. |
| 4. |
Within about 5 seconds the compass will start displaying a compass heading again. |
To re-calibrate the compass :
There are some conditions that can cause changes to the
vehicle magnets. Items such as installing a ski rack or a antenna or
even some body repair work on the vehicle can cause changes to the
vehicle's magnetic field. In these situations, the compass will need to
be re-calibrated to quickly correct for these changes.
| 1. |
Press and hold the feature control button (A) for more than 9
seconds. When the compass memory is cleared, a "C" will appear in the
display (B). |
| 2. |
To calibrate the compass, drive the vehicle is 2 complete circles at less than 8 KPH (5 MPH). |

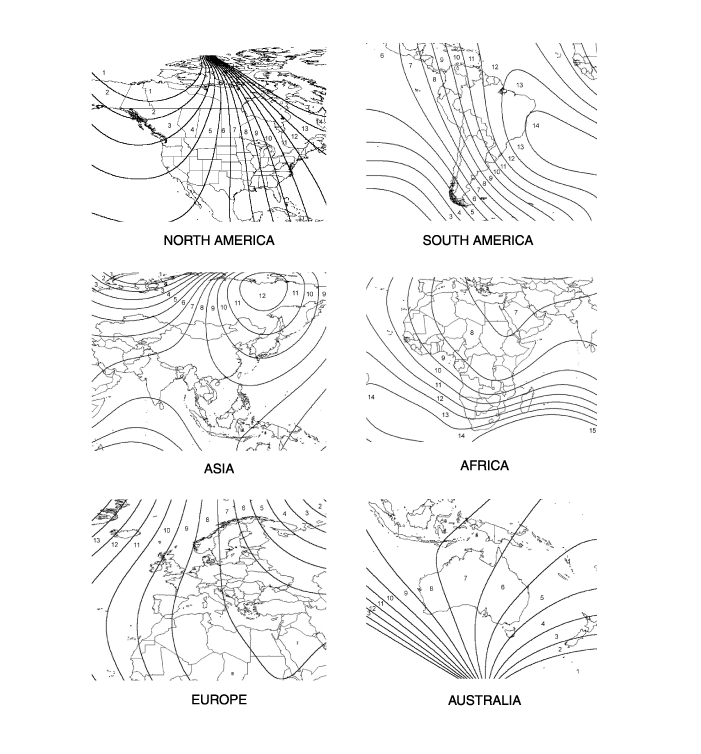

Zone Map
