| Components |

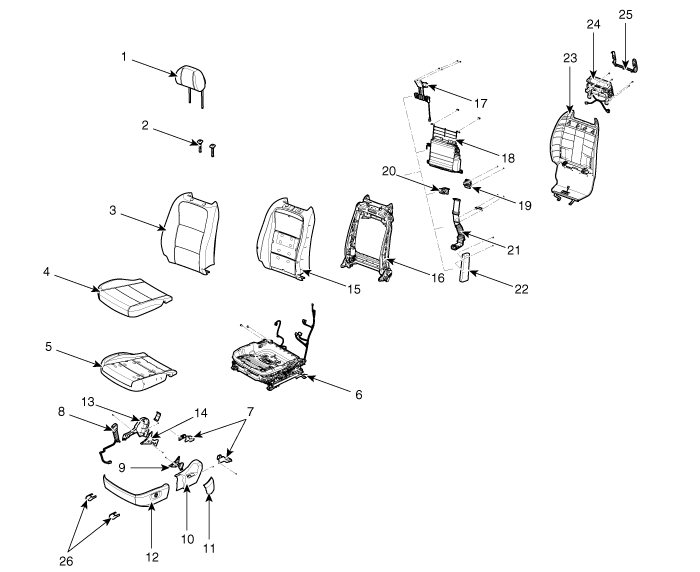

| 1. Front seat headrest 2. Front seat headrest guide 3. Front seat back cover 4. Front seat cushion cover 5. Front seat cushion pad 6. Front seat back cushion frame 7. Front seat mounting cover (RR) 8. Front seat belt buckle 9. Front inside cover [LH] 10. Front seat outer shield cover assembly 11. Front seat belt lower anchor cover 12. Front seat shield cover assembly 13. Front seat inner shield cover assembly | 14. Front inside cover [RH] 15. Front seat back pad 16. Front seat back frame 17. Front headrest power up / down adjuster 18. Pulma spring & lumber support assembly 19. Rear bag defroster device assembly 20. Front back blower duct 21. Front back duct assembly 22. Front seat back SAB module 23. Front seat back board 24. Rear monitor assembly 25. Monitor upper bezel 26. Front seat mounting cover (FR) |
Front Seat
...
Front Seat Assembly Components and Components Location
Component Location
1. Front seat assembly
...
