| Component |
Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating temperature range-22 ~ +176°F (-30°C ~ +80°C)Rated loadWasher switch0.2A (Relay load)
...
Schematic Diagrams

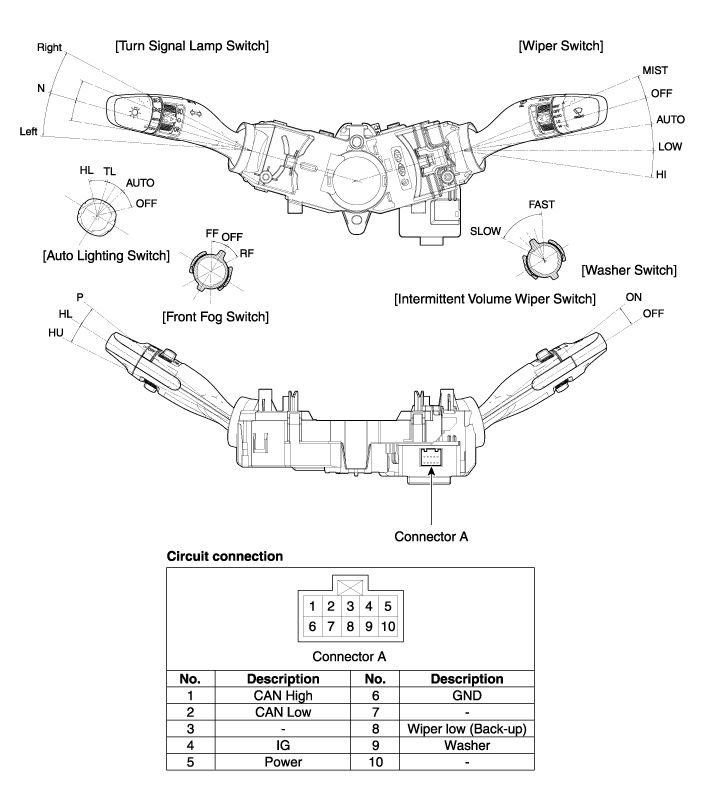

Circuit Diagram
...
See also:
Driver Door Module (DDM) Description and Operation
Description
1.
Driver Door Module (DDM)
(1)
Main features
ItemExplanationNotesInstallation positon Driver side door trimComponent configuration
1.
Embedded with CAN Communication IC
2.
...
Front Wheel Speed Sensor Components and Components Location
Components
1. Front wheel speed sensor cable2. Front wheel speed sensor
...
Troubleshooting
Failure Diagnosis
1.
In principle, ESP and TCS controls are prohibited in case of ABS failure.
2.
When ESP or TCS fails, only the failed system control is prohibited.
3.
However, when the ...
