Hyundai Equus: Components and Components Location - Front Suspension System - Suspension System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Components and Components Location

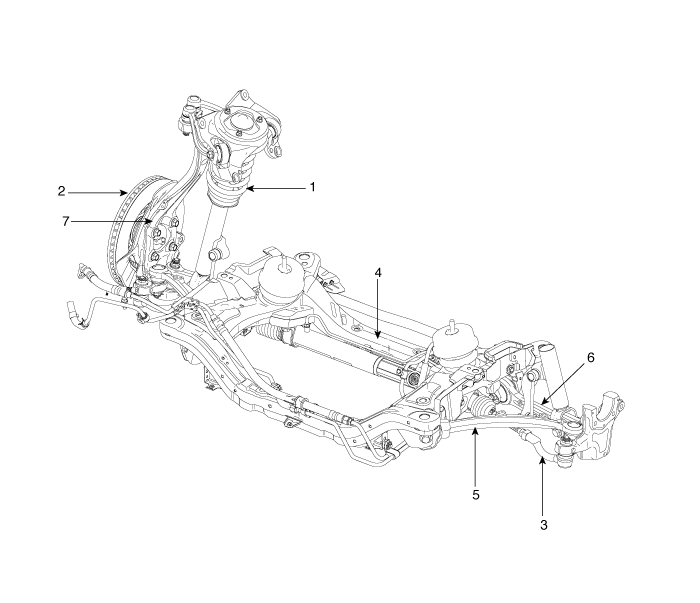

Components Location

1. Front strut assembly
2. Front brake disc
3. Tie rod end assembly
4. Front sub frame
5. Tension arm
6. Lateral arm
7. Front knuckle assembly
