| Components |
| [RH] |

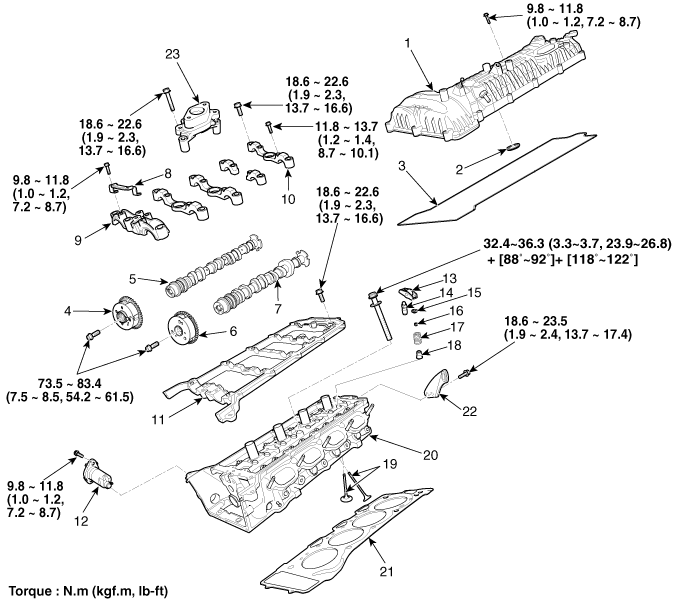

| 1. Cylinder head cover 2. Cylinder head cover oil seal 3. Cylinder head cover gasket 4. Exhaust CVVT assembly 5. Exhaust camshaft, RH 6. Intake CVVT assembly 7. Intake camshaft, RH 8. Cam to cam guide | 9. Camshaft thrust bearing cap 10. Camshaft bearing cap 11. Camshaft carrier 12. Timing chain tensioner 13. Roller finger follower 14. Hydraulic lash adjuster (HLA) assembly 15. Valve spring retainer 16. Valve spring retainer lock | 17. Valve spring 18. Valve stem seal 19. Valve 20. Cylinder head, RH 21. Cylinder head gasket, RH 22. Engine hanger 23. Fuel pump adapter |
| [LH] |
| 1. Cylinder head cover 2. Cylinder head cover oil seal 3. Cylinder head cover gasket 4. Exhaust CVVT assembly 5. Exhaust camshaft, LH 6. Intake CVVT assembly 7. Intake camshaft, LH 8. Cam to cam guide | 9. Camshaft thrust bearing cap 10. Camshaft bearing cap 11. Camshaft carrier 12. Timing chain tensioner 13. Roller finger follower 14. Hydraulic lash adjuster (HLA) assembly 15. Valve spring retainer 16. Valve spring retainer lock | 17. Valve spring 28. Valve stem seal 19. Valve 20. Cylinder head, LH 21. Cylinder head gasket, LH 22. Engine hanger 23. Fuel pump adapter |
Cylinder Head Repair procedures
Removal
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damaging the cylinder head, wait until the engine
coolant temperature drops below normal ...
