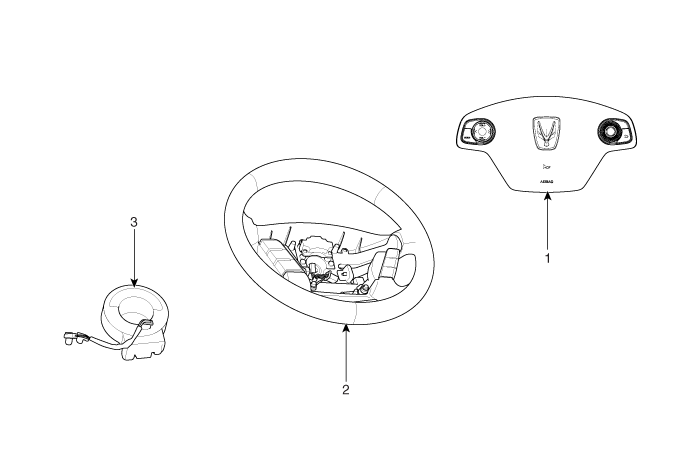

Hyundai Equus: Driver Airbag (DAB) Module and Clock Spring Components and Components Location

Driver Airbag (DAB) Module and Clock Spring Description and Operation

Description The Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal cras ...

Driver Airbag (DAB) Module and Clock Spring Repair procedures

Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Loosen the airbag module mounting bolts (2EA). 3. Remove the wiring fixing c ...
