| Engine Oil And Filter Replacement |
| • |
Prolonged and repeated contact with mineral oil will result
in the removal of natural fats from the skin, leading to dryness,
irritation and dermatitis. In addition, used engine oil contains
potentially harmful contaminants which may cause skin cancer. |
| • |
Exercise caution in order to minimize the length and
frequency of contact of your skin to used oil. Wear protective clothing
and gloves. Wash your skin thoroughly with soap and water, or use
water-less hand cleaner, to remove any used engine oil. Do not use
gasoline, thinners, or solvents. |
| • |
In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites. |
|
| 1. |
Park the car on level ground.
Start the engine and let it warm up. |
| 2. |
Drain engine oil.
| (1) |
Remove the oil filler cap. |
| (2) |
After lifting the car, remove the oil drain plug (A) and drain oil into a container.
|
|
| 3. |
Replace the oil filter.
| (1) |
Drain oil in the oil filter by loosening the drain bolt (C). |
| (2) |
Remove the oil filter cap (B) from the oil filter body. |
| (3) |
Remove the oil filter element (A).
|
| (4) |
Check and clean the oil filter installation surface. |
| (5) |
Check the part number of a new oil filter is same as old one. |
| (6) |
Install a new oil filter element and new O-rings. |
| (7) |
Apply clean engine oil to the new O-ring.
Lightly screw the oil filter cap into place, and tighten it until the O-ring contacts the seat. |
| (8) |
Finally tighten it again by specified tightening torque.
Tightening torque
Oil filter cap :
22.6 ~ 26.5N.m (2.3 ~ 2.7kgf.m, 16.6 ~ 19.5lb-ft)
Drain bolt :
8.8 ~ 10.8N.m (0.9 ~ 1.1kgf.m, 6.5 ~ 8.0lb-ft)
|
|
|
| 4. |
Fill new engine oil.
| (1) |
Install the oil drain plug with a new gasket.
Tightening torque :
34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ~ 32.5lb-ft)
|
|
| (2) |
Fill with new engine oil, after pull out the engine oil level gauge about 10cm (3.9370in).
Capacity
Total : 8.4L (8.88 US qt, 7.39 lmp qt, 2.218 US.gal)
Oil pan : 6.7L (7.08 US qt, 5.89 lmp qt, 1.769 US.gal)
Drain and refill including oil filter :
7.2L (7.61 US qt, 6.33 lmp qt, 1.900 US.gal)
|
| A. |
Fill a half oil of the total amount first and do the rest again after about one minute later. |
| B. |
Do not fill oil over the 'F' line, checking the level with the oil level gauge. |
|
| (3) |
Install the oil filler cap and oil level gauge. |
|
| 5. |
Start the engine and check to be sure no oil is leaking from the drain plug or oil filter. |
| 6. |
Recheck the engine oil level. |
| 1. |
Check the engine oil quality. Check the oil deterioration,
addition of water or coolant, discoloring or thinning. If the quality is
visibly poor, replace the oil. |
| 2. |
Check the engine oil level.
After warming up the engine and then 5 minutes after the
engine stop, oil level should be between the “L” and “F” marks
in the dipstick.
If low, check for leakage and add oil up to the “F” mark.
|
Do not fill with engine oil above the “F” mark. |
|

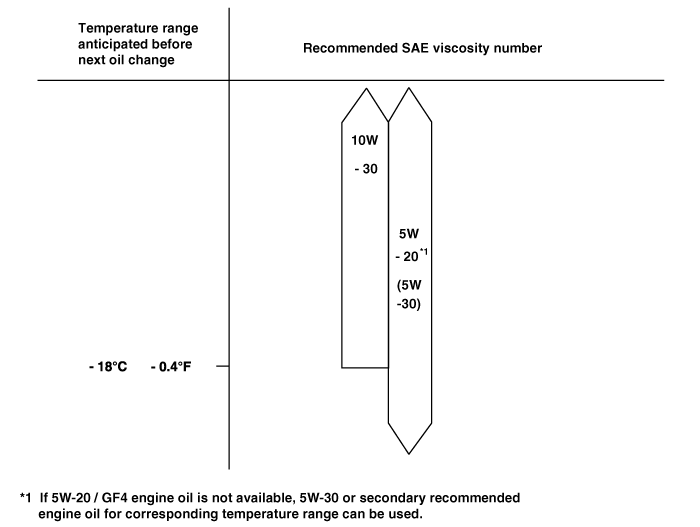

Selection Of Engine Oil
Recommendation (except Middle East): 5W-20/GF4&SM (If not
available, refer to the recommended API of ILSAC classification and SAE
viscosity number.)
API Classification : SL, SM or above
ILSAC classification : GF3, GF4 or above
SAE viscosity grade : Refer to the recommended SAE viscosity number.
|
For best performance and maximum protection of all types of operation, select only those lubricants which :
| 1. |
Satisfy the requirement of the API or ILSAC classification. |
| 2. |
Have proper SAE grade number for expected ambient temperature range. |
| 3. |
Lubricants that do not have both an SAE grade number and API
or ILSAC service classification on the container should not be used. |
|
Components
1. Oil filter cap2. Oil filter cap O-ring3. Oil filter element4. Oil filter body5. Oil filter assembly gasket6. Oil cooler7. Oil cooler gasket8. Lower oil pan9. Upper oil pan 10. Oil l ...
