| Components |

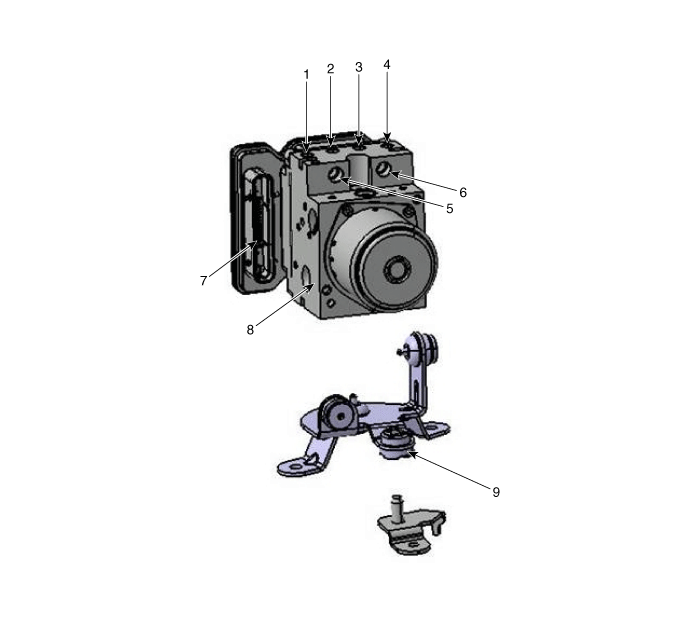

[Standard]
| 1. Front-right tube 2. Rear-left tube 3. Rear-right tube 4. Front-left tube 5. MC2 | 6. MC1 7. ESP control module connector 8. ESP control module(HECU) 9. ESP HECU bracket |
[Premium]
| 1. Front-right tube 2. Rear-left tube 3. Rear-right tube 4. Front-left tube 5. MC2 | 6. MC1 7. ESP control module connector 8. ESP control module(HECU) 9. ESP HECU bracket |
Troubleshooting
Failure Diagnosis
1.
In principle, ESP and TCS controls are prohibited in case of ABS failure.
2.
When ESP or TCS fails, only the failed system control is prohibited.
3.
However, when the ...
