Hyundai Equus: Filter replacement - Air cleaner - Maintenance - Hyundai Equus 2009-2024 Owners ManualHyundai Equus: Filter replacement

It must be replaced when necessary, and should not be washed.


It must be replaced when necessary, and should not be washed.

You can clean the filter when inspecting the air cleaner element. Clean the filter by using compressed air.

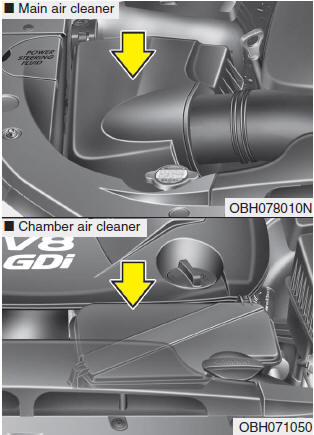

Main air cleaner

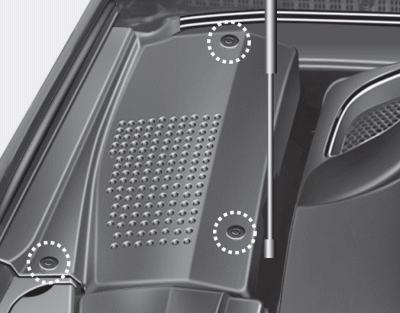

1. Push the top of the fastener to remove the cover.


1. Push the top of the fastener to remove the cover.

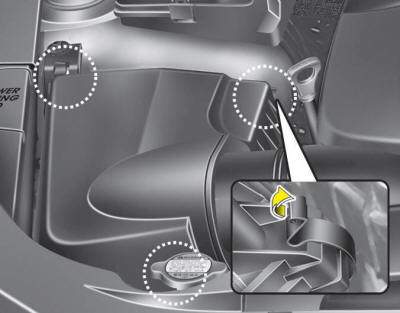

2. Loosen the air cleaner cover attaching clips and open the cover.


2. Loosen the air cleaner cover attaching clips and open the cover.

3. Wipe the inside of the air cleaner.

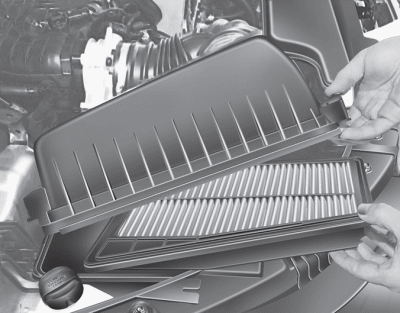

4. Replace the air cleaner filter.


4. Replace the air cleaner filter.

5. Lock the cover with the cover attaching clips.

Chamber air cleaner

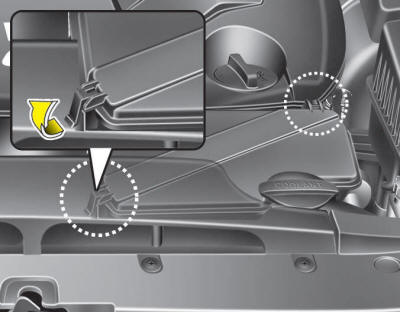

1. Loosen the air cleaner cover attaching clips and open the cover.


1. Loosen the air cleaner cover attaching clips and open the cover.

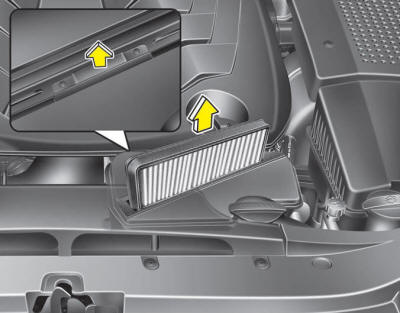

2. Replace the air cleaner filter after pulling up the locking tab (1).


2. Replace the air cleaner filter after pulling up the locking tab (1).

3. Lock the cover with the cover attaching clips.

Replace the filter according to the Maintenance Schedule.

If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals. (Refer to “Maintenance under severe usage conditions” in this section.)

CAUTION

  • Do not drive with the air cleaner removed; this will result in excessive engine wear.
  • When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake, or damage may result.
  • Use a HYUNDAI genuine part. Use of non-genuine parts could damage the air flow sensor.
