Hyundai Equus: Front Air Strut Assembly Components and Components Location - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Front Air Strut Assembly Components and Components Location

Components

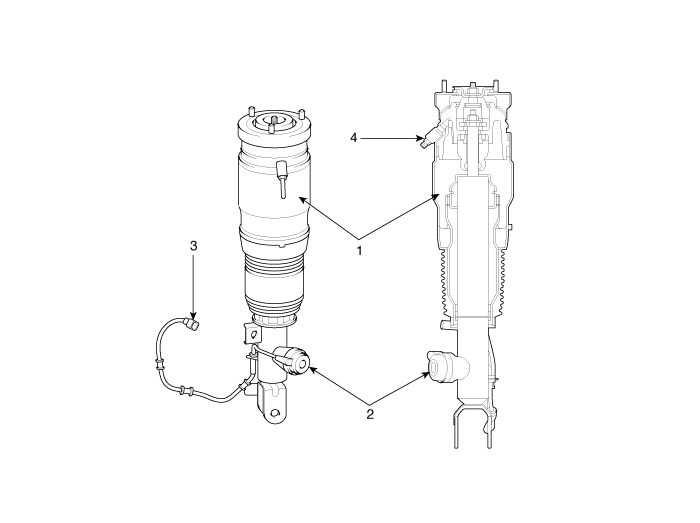

1. Air spring
2. CDC damper
3. Connector
4. Air tube connector

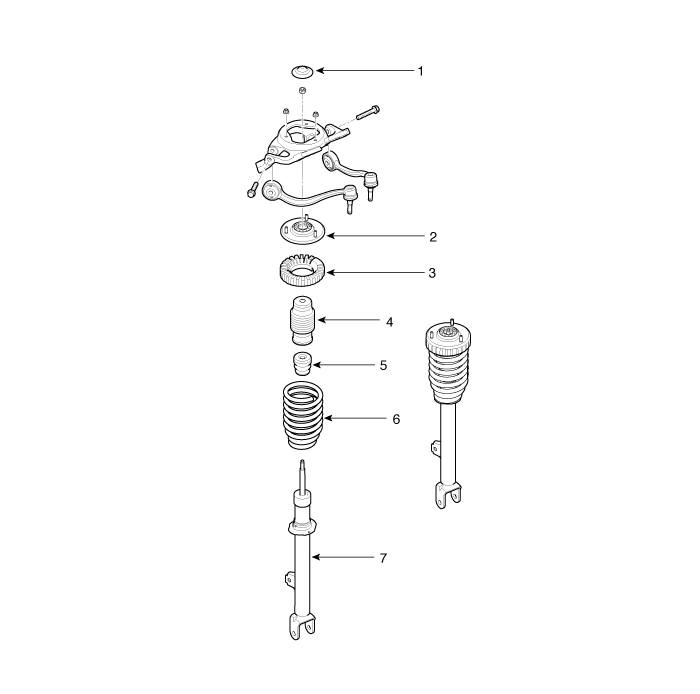

1. Insulator cap
2. Insulator assembly
3. Spring upper pad
4. Dust cover
5. Bump stopper
6. Coil spring
7. Shock absorber

    Repair procedures
    Air Injection Procedure     • When injecting air into the air suspension system, always raise the vehicle off the ground using a lift to prevent potential damage to the ai ...

    Front Air Strut Assembly Description and Operation
    Description The air spring & damper is one unit so that it is not possible to make separation. The average pressure of front air spring is around 7.5 bar. When the front air spring is delive ...
