Hyundai Equus: Front Disc Brake Components and Components Location - Brake System - Brake System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Front Disc Brake Components and Components Location

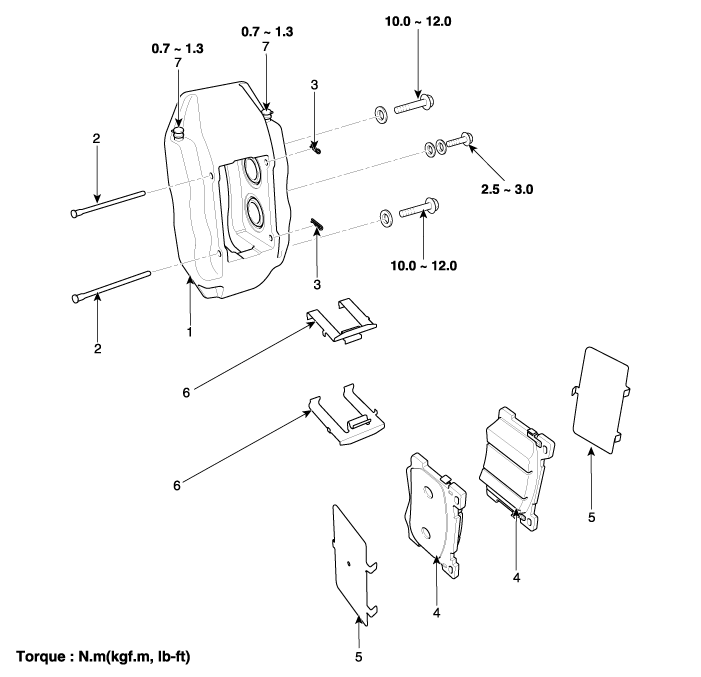

Components

1. Caliper body
2. Guide pin
3. Locking pin
4. Brake pad
5. Pad shim
6. Retraction spring
7. Bleed screw

    Brake Pedal Repair procedures
    Removal 1. Remove the lower crash pad. (Refer to Body - "Crash Pad") 2. Disconnect the stop lamp switch connector (A). 3. Remove the mounting bracket nut (B). Tightening torque : 14. ...

    Front Disc Brake Repair procedures
    Removal 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the brake hose mounting bracket. (Knuckle mounting pa ...
