Hyundai Equus: Front Rear Parking Assist System Switch Components and Components Location - Front / Rear Parking Assist System - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Front Rear Parking Assist System Switch Components and Components Location

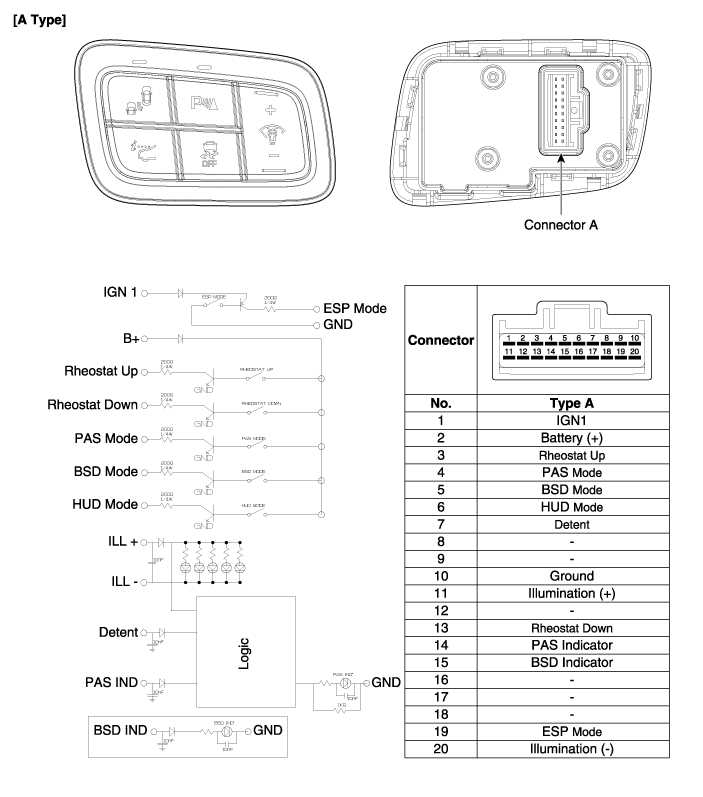

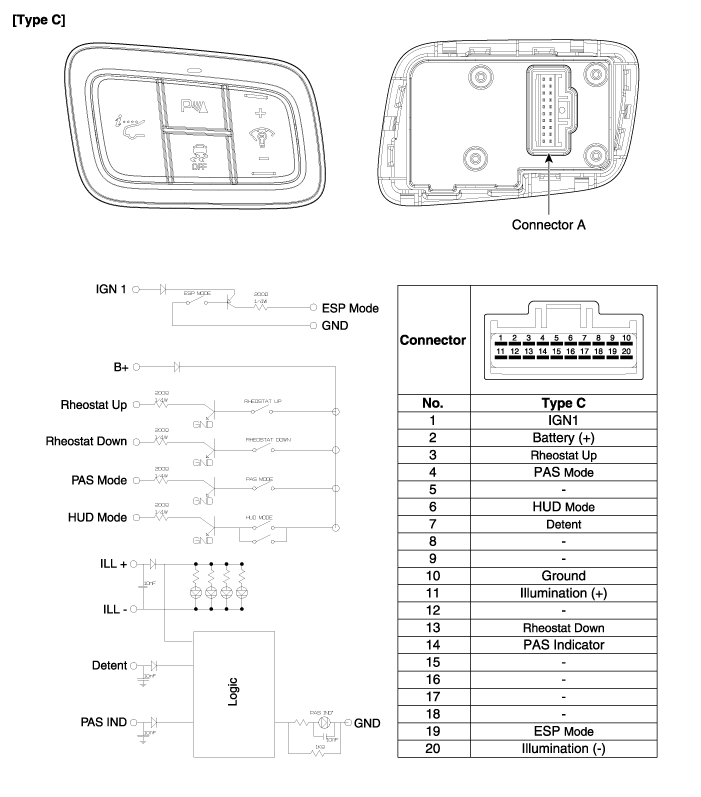

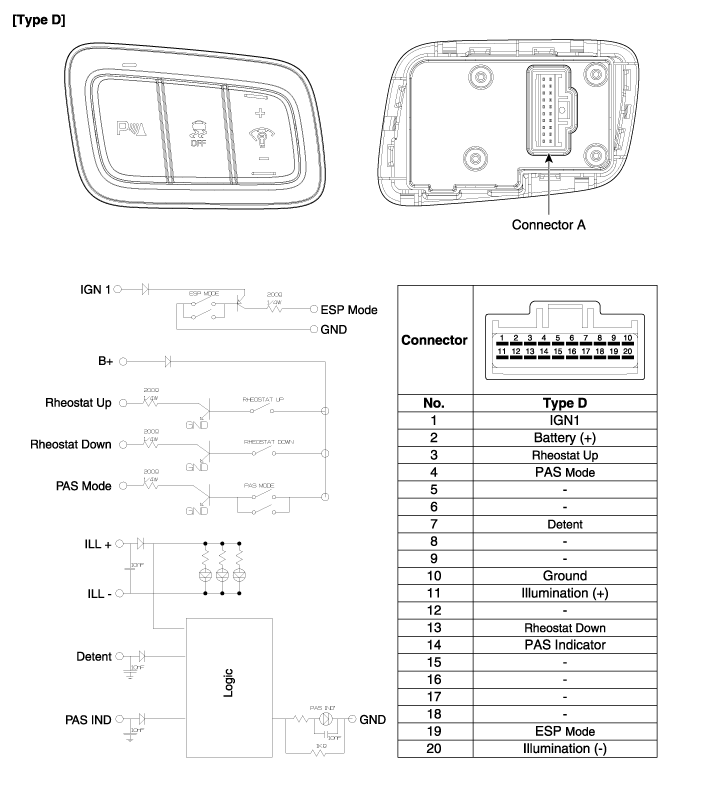

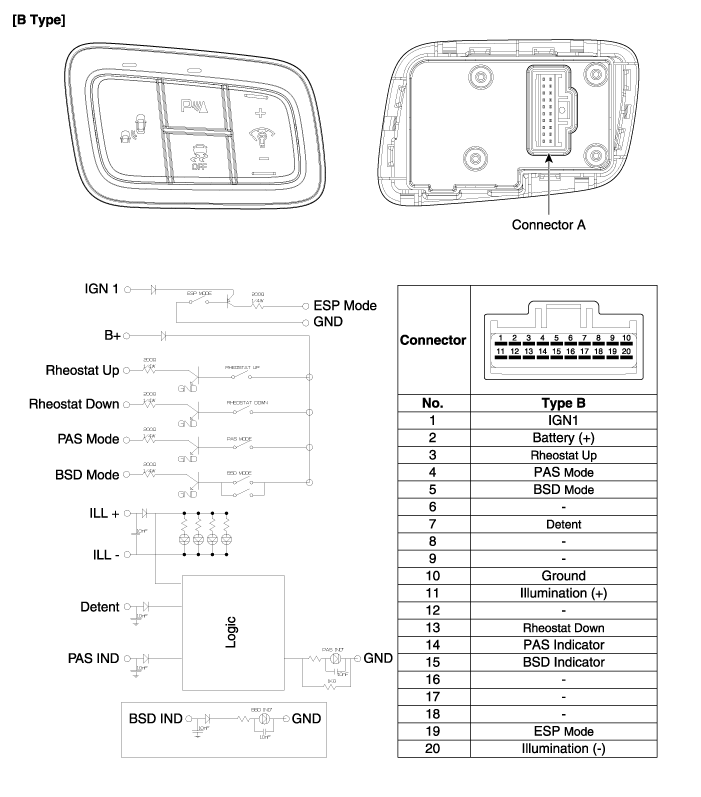

Component
