Hyundai Equus: Front Seat Frame Assembly Components and Components Location - Front Seat - Body (Interior and Exterior) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Front Seat Frame Assembly Components and Components Location

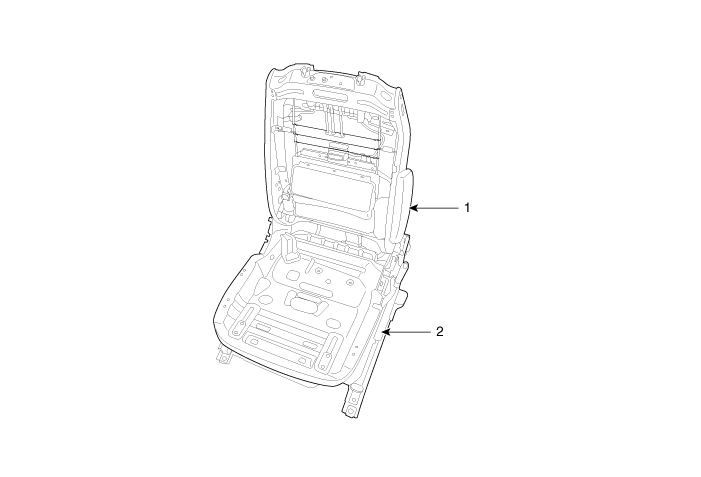

Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly

    Front Seat Cushion Cover Repair procedures
    Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply prote ...

    Front Seat Frame Assembly Repair procedures
    Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply prote ...
