Hyundai Equus: Front Wiper Motor Components and Components Location - Windshield Wiper/Washer - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Front Wiper Motor Components and Components Location

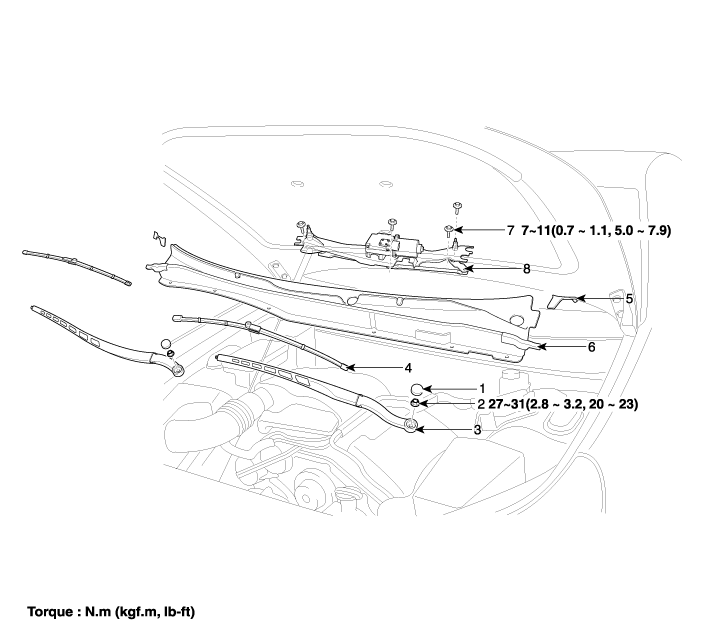

Components

1. Nut cap
2. Nut
3. Wiper arm
4. Wiper blade
5. Cowl top cover braket
6. Cowl top cover
7. Washer bolt
8. Wiper motor & linkage assembly
