Hyundai Equus: Glove box

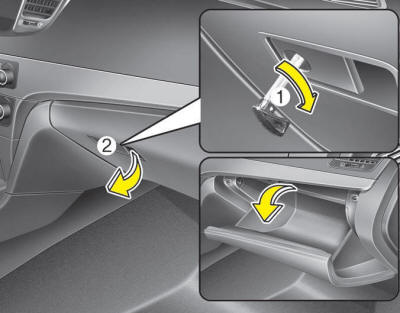

The glove box can be locked and unlocked with the mechanical key of the smartkey (1).
To open the glove box, pull the lever (2) and the glove box will automatically open. Close the glove box after use.
WARNING
To reduce the risk of injury in an accident or sudden stop, always keep the glove box door closed while driving.
CAUTION
Do not keep food in the glove box for a long time.
Center console storage
To open the center console storage, push the button (1) or (2). ...
Sunglass holder
To open the sunglass holder, press the cover and the holder will slowly open.
Place your sunglasses in the compartment door with the lenses facing out. Push to
close.
WARNING
Do not keep ...
