Hyundai Equus: Information Mode - LCD Display - Features of your vehicle - Hyundai Equus 2009-2024 Owners ManualHyundai Equus: Information Mode

Service Interval

This mode shows the service interval (mileage and days).

❈ For the setting of the service interval, refer to "User Settings Mode" of the LCD display.

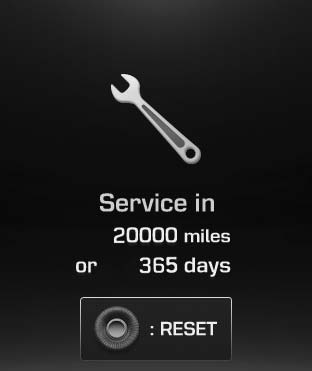

Service in

It calculates and displays when you need a scheduled maintenance service (mileage


It calculates and displays when you need a scheduled maintenance service (mileage or days).

If the remaining mileage or time reaches 900 miles (1,500 km) or 30 days, "Service in" message is displayed for several seconds each time you set the Engine Start/Stop Button to the ON position.

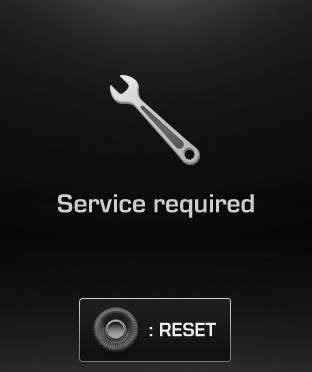

Service required

If you do not have your vehicle serviced according to the already inputted service


If you do not have your vehicle serviced according to the already inputted service interval, "Service required" message is displayed for several seconds each time you set the Engine Start/Stop Button to the ON position.

To reset the service interval to the mileage and days you inputted before:

- Press the OK button for more than 1 second.

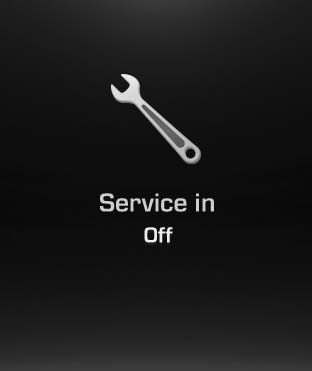

Service in OFF

If the service interval is not set, "Service in OFF" message is displayed on


If the service interval is not set, "Service in OFF" message is displayed on the LCD display.

✽ NOTICE

If any of the following conditions occurs, the mileage and days may be incorrect.

- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.

Warning Message

If one of followings occurs, warning messages will be displayed on the information mode for about 10 seconds.

- Malfunction of the pre-safe seat belt, electronic control suspension, or advanced smart cruise control system
- Low washer fluid
- Check fuel cap

    Turn By Turn (TBT) Mode (if equipped)
    This mode displays the state of the navigation. ...

    User Settings Mode
    HUD Settings (if equipped) Display Height Adjust the height of the HUD image on the windshield glass (Level 0 to 20). Illumination Adjust the intensity of the HUD illumination (Level 0 to 20). ...
