Hyundai Equus: LCD Display Control
Second generation VI (2009–2024) / Hyundai Equus 2009-2024 Owners Manual / Features of your vehicle / Instrument cluster / LCD Display Control

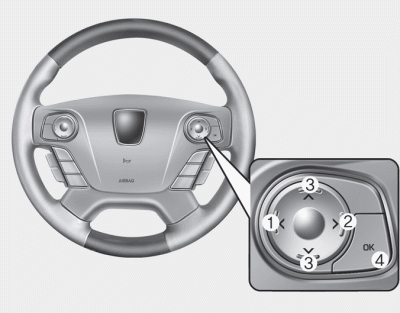

The LCD display modes can be changed by using the control buttons on the steering wheel.
(1)
button : Changing LCD modes
(right to left), or returning to previous position
(2)
button : Changing LCD modes (left
to right)
(3)
,
button : Changing items (upper or lower)
(4) OK button : selecting or resetting
❈ For the LCD modes, refer to "LCD Display" in this chapter.

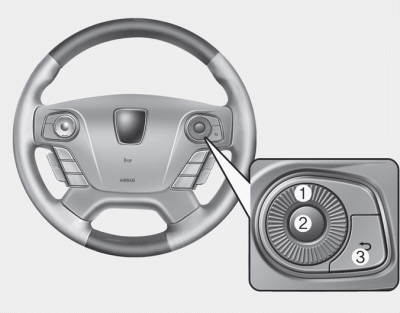

(1) Haptic switch : changing LCD modes or items
(2) OK button : selecting or resetting
(3) RETURN button : returning to previous position
You can adjust the rotating effort of the haptic switch on the "User Settings Mode" of the LCD Display
❈ For more details, refer to "LCD Display" to in this chapter.
