If the Smart Key does not operate normally, you can lock or unlock the door by using the mechanical key.
Mechanical Key of Conventional Smart Key
Depress and hold the release button (1) and remove the mechanical key (2). Insert the mechanical key in to the key hole on the door.
To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.
Mechanical Key of Card Type Smart Key

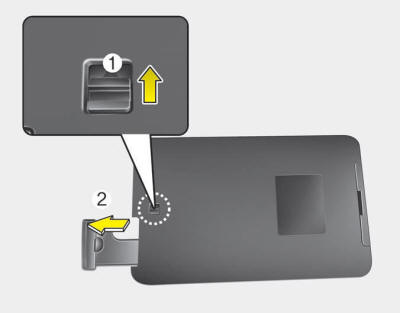

Push and hold the release lever (1) and remove the mechanical key (2). Insert the mechanical key in to the key hole on the door.
To reinstall the mechanical key, push and hold the release lever (1) and put the key into the hole and push it until a click sound is heard.
Cluster Ion Generator Repair procedures
Inspection
1.
Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.
DisplayFail description00Normal51Cluster ion generator fault
* For diagnostic procedur ...
Compressor Schematic Diagrams
Circuit diagram
1.
Air compressor connector
[Motor power connector (A)][Exhaust valve connector (B)][Temperature sensor connector (C)]
2.
Air compressor terminal function
[Motor power]
...
Components and Components Location
Components Location
1. Front strut assembly2. Front brake disc3. Tie rod end assembly4. Front sub frame5. Tension arm6. Lateral arm7. Front knuckle assembly
...
