Hyundai Equus: Pantoscopic Camera Components and Components Location - Multi-view Camera System - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Pantoscopic Camera Components and Components Location

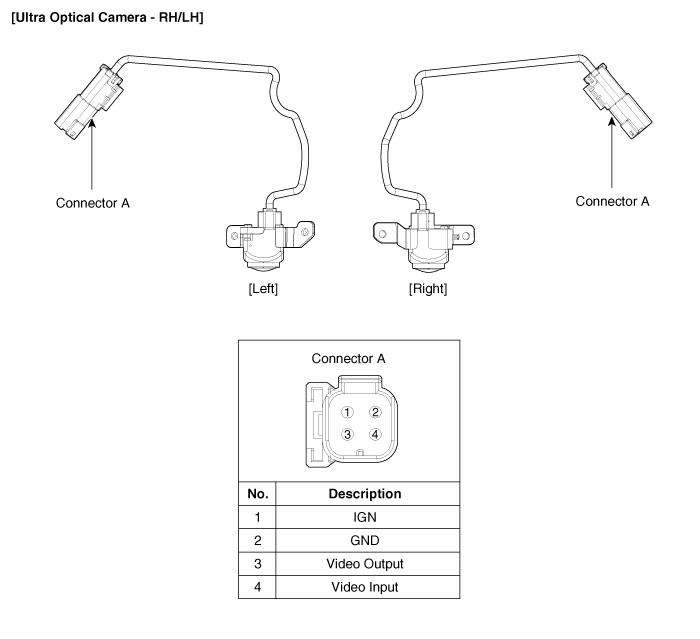

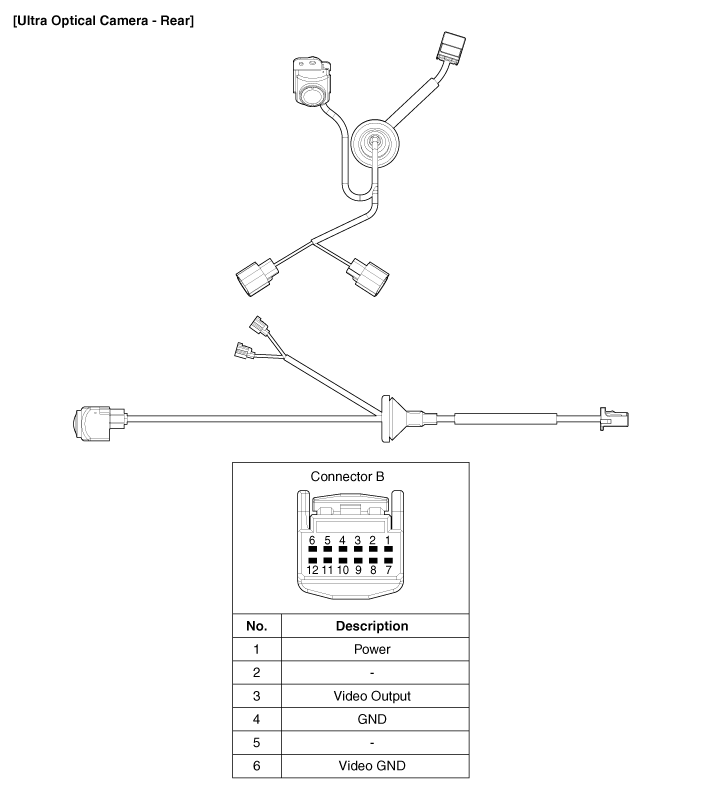

Components

    Multi-view Camera Unit Repair procedures
    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower pannel. (Refer to Body - "Crash Pad Lower Pannel") 3. Remove the Multi-view Camera unit (A) after di ...

    Pantoscopic Camera Repair procedures
    Removal     In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials. Front Pantoscopic Camera 1. Disconnect the negati ...

    See also:

    High mounted stop light
    1. Remove the rear seat 5 Seater 1.Disconnect the negative battery cable. 2.Remove the rear seat cushion. 3.Loosen the mounting bolts, then remove the rear seat back. 4.Disconnect the conne ...

    In-car Sensor Repair procedures
    Inspection 1. Turn the ignition switch ON. 2. Blow warm air into the in-car sensor air inlet. Measure the sensor resistance between 1 and 3 terminals. 1. Sensor Ground 2. Motor (-)3. Incar ...

    Solenoid Valve Schematic Diagrams
    Circuit diagram 1. Solenoid valve connector terminal 2. Solenoid valve terminal function TerninalFunction1Air spring valve FL2Ambiance valve3Air spring valve RR4Air spring valve RL5Solenoid ...
