Hyundai Equus: Passenger Airbag (PAB) Module Components and Components Location

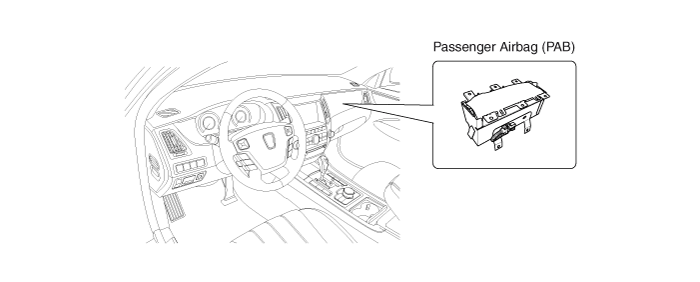

| Components |
Passenger Airbag (PAB) Module Description and Operation
Description
The passenger airbag (PAB) is installed inside the crash pad
and protects the front passenger in the event of a frontal crash. The
SRSCM determines if and when to deploy the PAB.
...
Passenger Airbag (PAB) Module Repair procedures
Removal
1.
Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2.
Remove the glove box housing.
(Refer to Body - "Glove Box Housing")
3.
Disc ...
