Hyundai Equus: Rear combination light bulb replacement
Second generation VI (2009–2024) / Hyundai Equus 2009-2024 Owners Manual / Maintenance / Light bulbs / Rear combination light bulb replacement

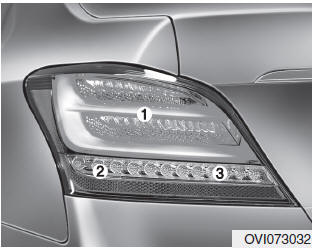

(1) Stop, tail light and side marker
(2) Rear turn signal light
(3) Back-up light
Rear back-up light
If the light is not operating, have the vehicle checked by an authorized EQUUS dealer.
Turn signal, stop and tail light
If the light is not operating, have the vehicle checked by an authorized EQUUS dealer.
Side repeater light bulb replacement (if equipped)
If the light bulb is not operating, have the vehicle checked by an authorized
EQUUS dealer. ...
