Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle Components and Components Location
| Component Location (1) |

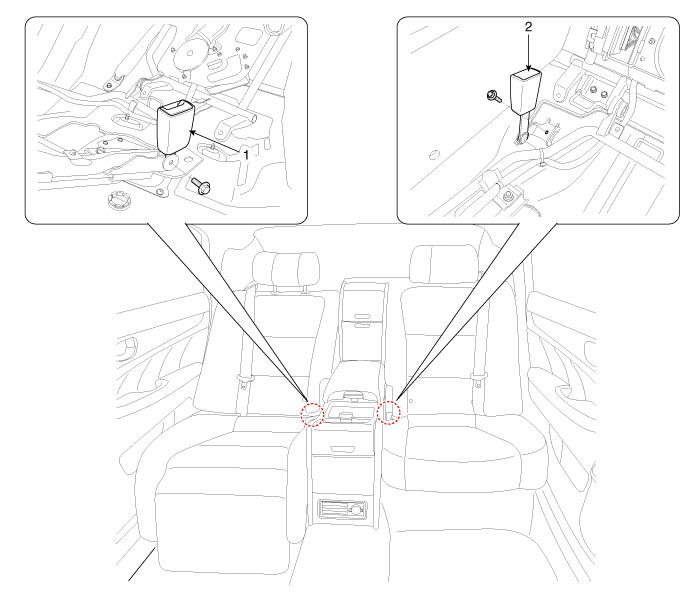

| [Sedan] |
| 1. Rear seat belt buckle [LH] | 2. Rear seat belt buckle [RH] |

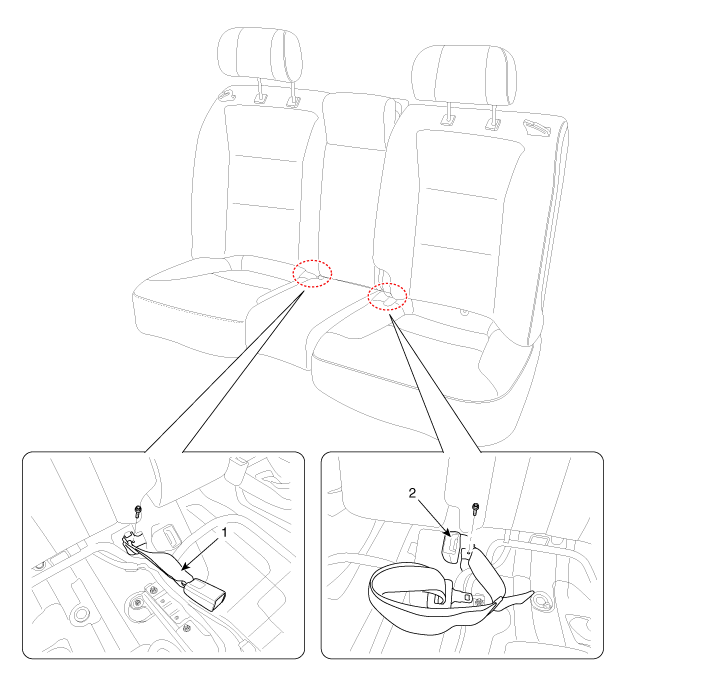

| [Limousine] |
| 1. Rear seat belt buckle [LH] | 2. Rear seat belt buckle [RH] |
Rear Center Seat Belt Retractor Repair procedures
Replacement
•
When installing the belt, make sure not to damage the retractor.
1.
Remove the rear package tray trim.
(Refer to Interior Trim - "Rear Package Tray T ...
Rear Seat Belt Buckle Repair procedures
Replacement
[Sedan 6:4]
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Loosen the mounting bolt, and then remove the rear seat belt buckle (A).
[L ...
