Hyundai Equus: Rear Variable Damper Schematic Diagrams - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Rear Variable Damper Schematic Diagrams

Circuit Diagram
1.

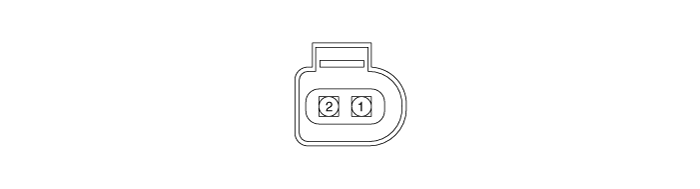

Rear variable damper connector

2.
Rear variable damper terminal function
Terminal
Function
1
Variable damper (-)
2
Variable damper (+)

3.
Circuit diagram
