| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Detach the lamp lens and reflector (A) from the room lamp with a flat-tip screwdriver.
|
| 3. |
Remove the room lamp (A) after removing the screws.
|
| 4. |
Replace the room lamp after removing the connectors (A).
|
Vanity Lamp
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the lens (A) using a flat-tip screwdriver.
|
| 3. |
Remove the vanity lamp (A) after loosening the mounting screws.
|
| 4. |
Remove the vanity lamp assembly after disconnecting the connector (A).
|
| Installation |
Room Lamp
| 1. |
Connect the connector and install the room lamp. |
| 2. |
Install the lamp reflector and lamp len. |
Vanity Lamp
| 1. |
Install the vanity lamp. |
| 2. |
Install the lens. |
| Inspection |
| 1. |

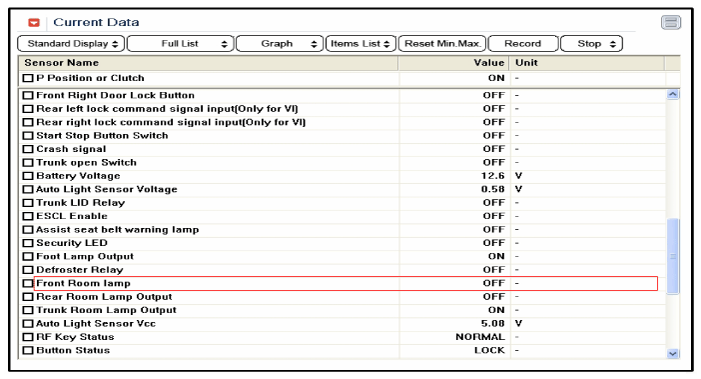

Check "IPM" input/output specification of room lamp using the GDS. |
| 2. |
Select option "Input/output monitoring".
|
| 3. |

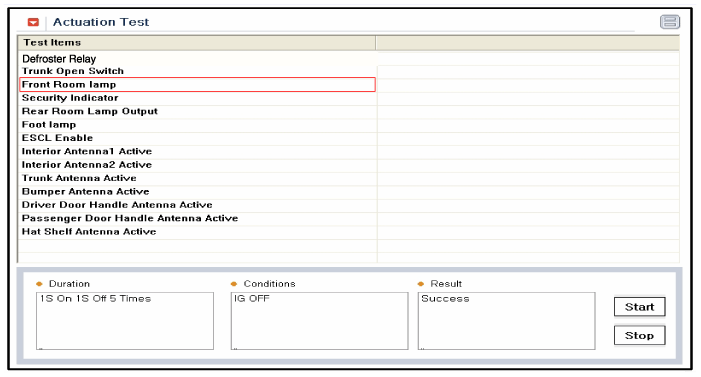

Select option "Actuation Test" to perform functional test.
|
