To set cruise control speed:

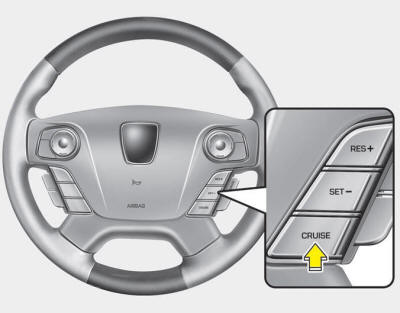

1. Push the CRUISE (ON·OFF) button on the steering wheel to turn the system on. The CRUISE indicator light in the instrument cluster will illuminate.
2. Accelerate to the desired speed.

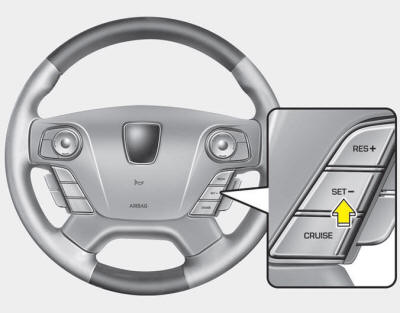

3.Push the SET- switch, and release it at the desired speed. The SET indicator light, set speed and vehicle to vehicle distance on the LCD screen will illuminate. Release the accelerator pedal. The desired speed will automatically be maintained.
If there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead.
On a steep grade, the vehicle may slow down or speed up slightly while going uphill or downhill.

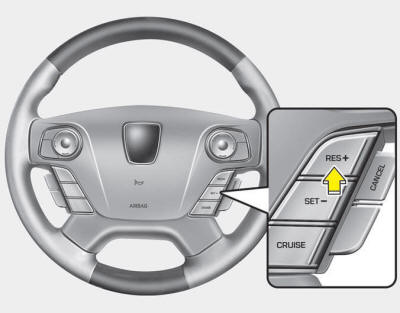

To increase cruise control set speed:
Follow either of these procedures:
To decrease the cruising speed:
Follow either of these procedures:
To temporarily accelerate with the cruise control on:
If you want to speed up temporarily when the cruise control is on, depress the accelerator pedal.
Increased speed will not interfere with cruise control operation or change the set speed.
To return to the set speed, take your foot off the accelerator.
If you press the SET- switch at increased speed, the cruising speed will be set again.
✽ NOTICE
Be careful when accelerating temporarily, because the speed is not regulated automatically at this time even if there is a vehicle in front of you.
Cruise control will be canceled when:
Cancelled manually
- The brake pedal is depressed.

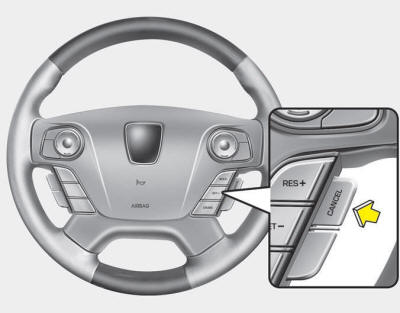

- Pull the lever (to CANCEL) located on the steering wheel.
- Depress the brake pedal and pull the lever (to CANCEL).
The advanced smart cruise control turns off temporarily when the indicator on the LCD display turns off.
The CRUISE indicator is illuminated continuously.
Cancelled automatically
Each of these actions will cancel the smart cruise control operation. (the SET indicator, set speed and vehicle to vehicle distance on the LCD display will go off.)
In a condition the smart cruise control is cancelled automatically, the smart cruise control will not resume even though the RES+ or SET- button is pressed. Also, the EPB (electric parking brake) will be applied when the vehicle is stopped.
CAUTION
If the smart cruise control is cancelled by other than the reasons mentioned, we recommend have the system checked by an authorized EQUUS dealer.
To resume cruise control set speed:

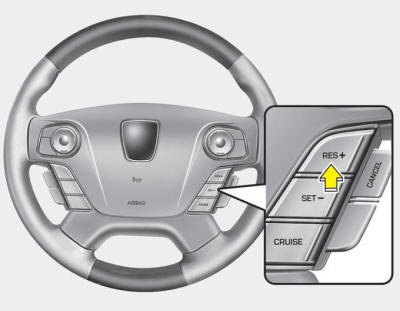

If any method other than the CRUISE switch was used to cancel cruising speed and the system is still activated, the most recent set speed will automatically resume when the RES+ switch is pushed.
It will not resume, however, if the vehicle speed has dropped below approximately 6 mph (10 km/h) when the sensor detects the vehicle ahead or if the vehicle speed has dropped below approximately 19 mph (30 km/h) when there is no vehicle in front of your vehicle.
✽ NOTICE
Always check the road conditions when pressing the RES+ switch to resume speed.
To turn cruise control off, do one of the following:
- Push the CRUISE button
- Depress the brake pedal and push the CRUISE button
Both of these actions cancel smart cruise control operation. If you want to resume smart cruise control operation, repeat the steps provided in “To set cruise control speed” on the previous page.
