WARNING
Always wear appropriate shoes when operating your vehicle. Unsuitable shoes (high heels, slippers, ski boots, etc.) may interfere with your ability to use the brake and accelerator pedal.

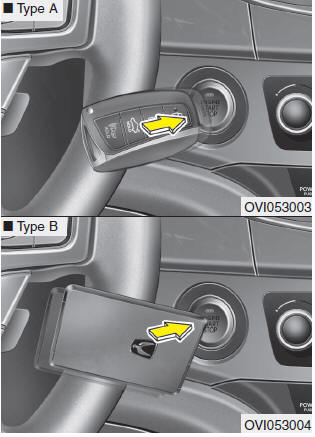

1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Place the shift lever in the P(Park) position.
4. Depress the brake pedal.
5. Press the Engine Start/Stop Button.
6. In extremely cold weather (below 0°F / -18°C) or after the vehicle has not been
operated for several days, let the engine warm up without depressing the accelerator.
Whether the engine is cold or warm, it should be started without depressing the accelerator.
CAUTION
If the engine stalls while you are in motion, do not attempt to move the shift lever to the P (Park) position. If traffic and road conditions permit, you may put the shift lever in the N(Neutral) position while the vehicle is still moving and press the Engine Start/Stop Button in an attempt to restart the engine.
WARNING
The engine will start by pressing the Engine Start/Stop Button, only when the smart key is in the vehicle. Never allow children or any person who is unfamiliar with the vehicle to touch the Engine Start/Stop Button or related parts.
✽ NOTICE
CAUTION
Do not press the Engine Start/Stop Button for more than 5 seconds except when the stop lamp fuse is disconnected.
Mic Repair procedures
Removal
1.
Remove the hands free mic (A) from the roof trim.
Installation
1.
Install the hands free mic after connecting the mic connector.
Inspection
1.
Remove the handsfree mic (A) aft ...
Description and Operation
Description
Active type ECS is applied and it includes the self leveling
function.As shown in the picture, it consists of air spring, damper,
reservoir tank, compressor (with dryer), solenoid ...
Front Wheel Speed Sensor Repair procedures
Removal
1.
Remove the connector after removing the front wheel speed sensor clip.
2.
Remove the front wheel speed sensor.
(Refer to Driveshaft and Axle - "Front Axle Assembly")
3.
Install ...
