Hyundai Equus: Steering Column Shroud Panel Components and Components Location - Crash Pad - Body (Interior and Exterior) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Steering Column Shroud Panel Components and Components Location

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel Components and Components Location

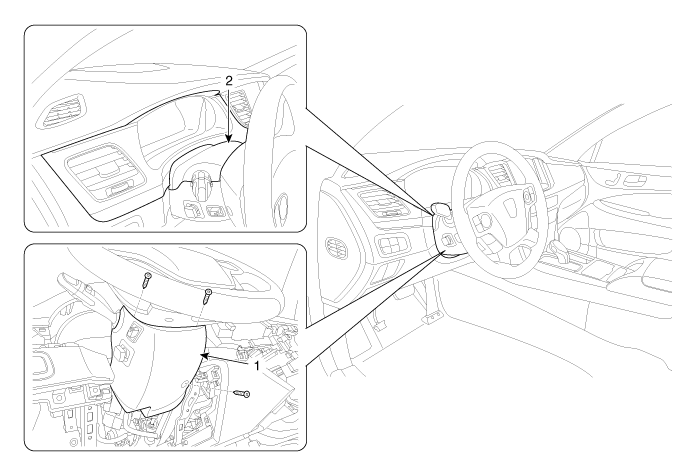

Component Location

1. Steering column shroud lower panel
2. Steering column shroud upper panel
