Description
1.
Steering Wheel Remote Controller (SWRC)

(1)
Main features
Item
Description
Installation location
 Located on the driver side handle (CAN Module is embedded in the audio switch on the upper right)
Component configuration
1.
ECU
2.
CAN Communication IC: Body Electrical System
3.
Steering Wheel Remote Control Switch (Audio & Hands-Free/Bluetooth & Voice Recognition & LDWS&CLUSTER&SCC)
Main Features
1.
Audio control switch signal is transmitted via CAN
(VOL UP/DOWN, SEEK UP/DOWN, MUTE, MODE)
2.
Hands Free and Bluetooth control switch signals are transmitted via CAN
(Voice Recognition, CALL (SEND), HANGUP (END))
3.
Cluster display control switch signal is transmitted via CAN
(Menu OK (DISP), UP, DOWN) & Haptic Switch
4.
Cruise control switch signal is transmitted via CAN (including Smart Cruise)
(+RES, -SET, CANCEL, ON/OFF, Distance between vehicles)
5.
LDWS control switch signal is transmitted via CAN
6.
B-CAN communication IC embedded (B_CAN Communication Module)

(2)

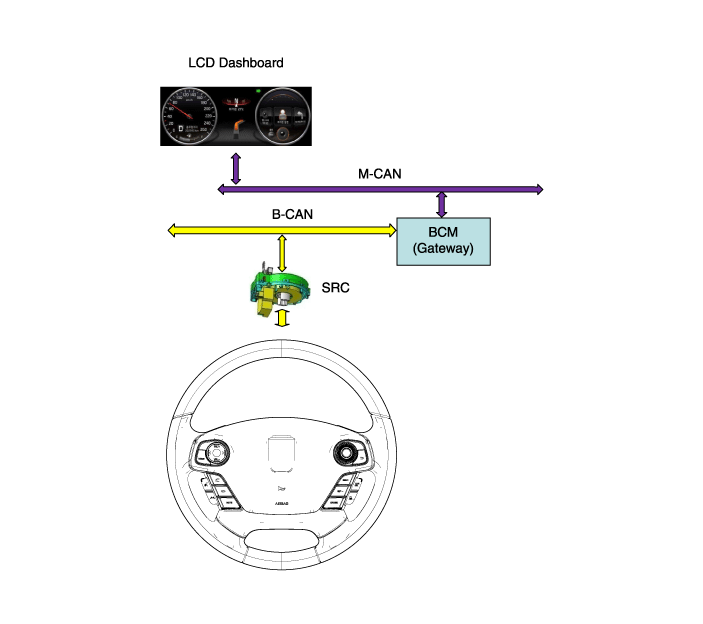

SWRC signal flow

(3)
For detail information, refer to the Steering Wheel Remote Controller (SWRC).
(Refer to AVN system - "Steering Wheel Remote Controller (SWRC)")
