| Replacement |
When the receiver first arrives for replacement:
|
It is important to make sure that the correct receiver is
used to replace the faulty part i.e. it must be High Line (95800-3N200)
in order to have the correct inflation warning thresholds set. |
| 1. |
Disconnect vehicle battery. |
| 2. |
Remove the crash pad.
(Refer to BD - "Crash Pad") |
| 3. |
Remove faulty part and fit bracket assembly to new part.
|
| 4. |
Secure new part to vehicle and fit connector. |
| 5. |
Re-connect battery and turn Ignition on.

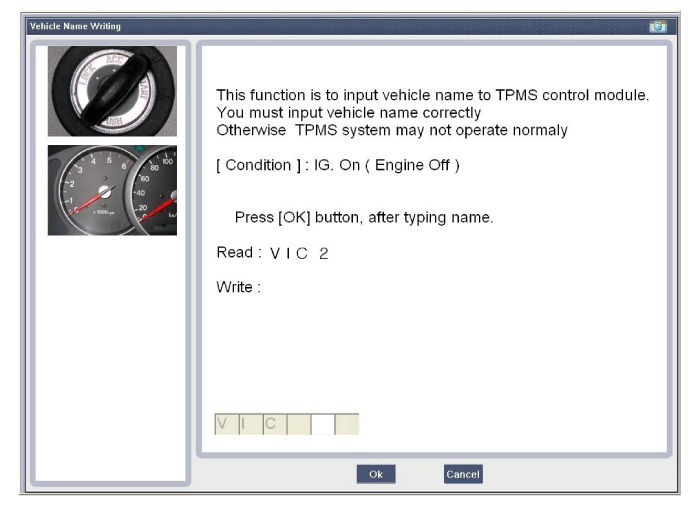

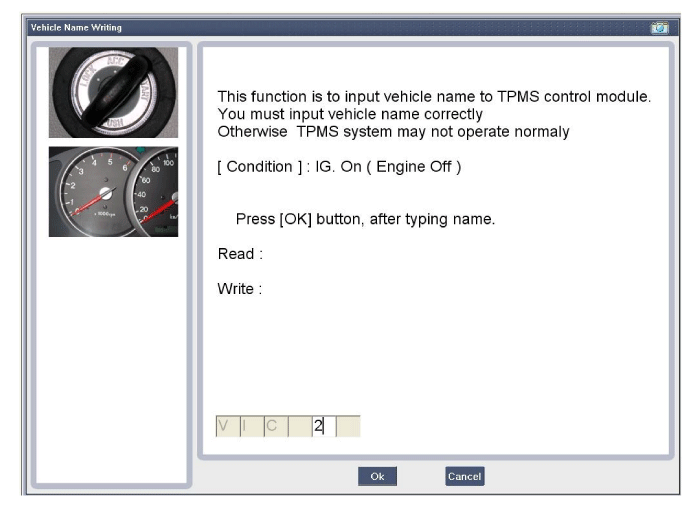

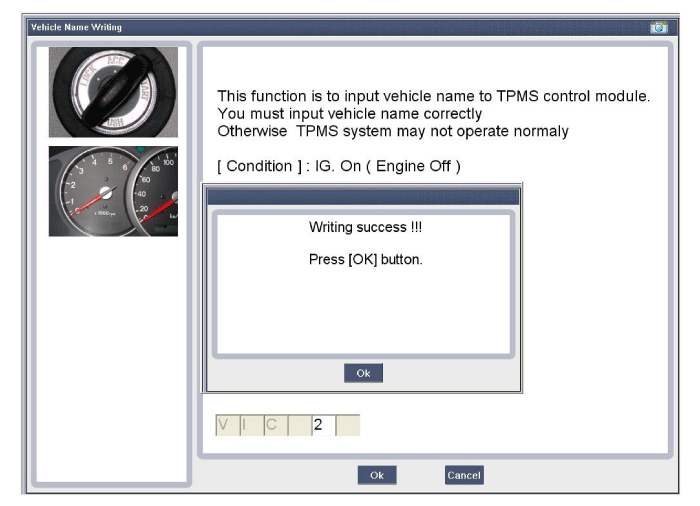

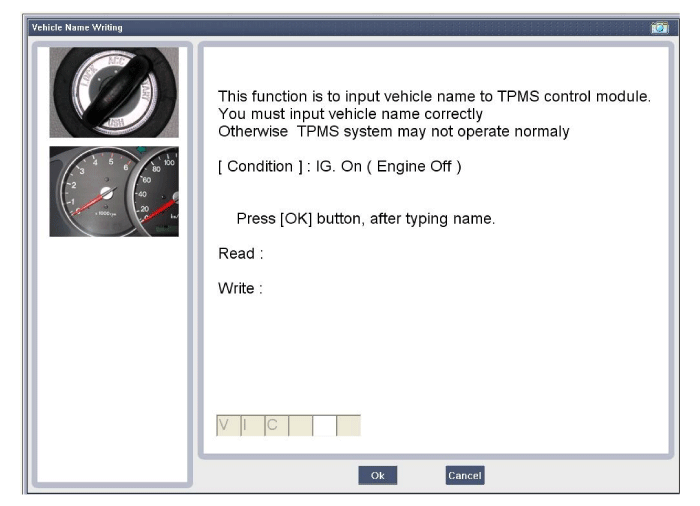

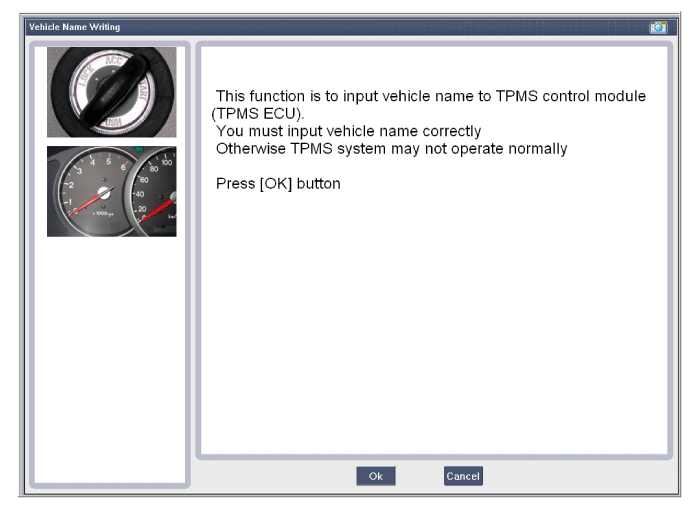

Vehicle Name Writing

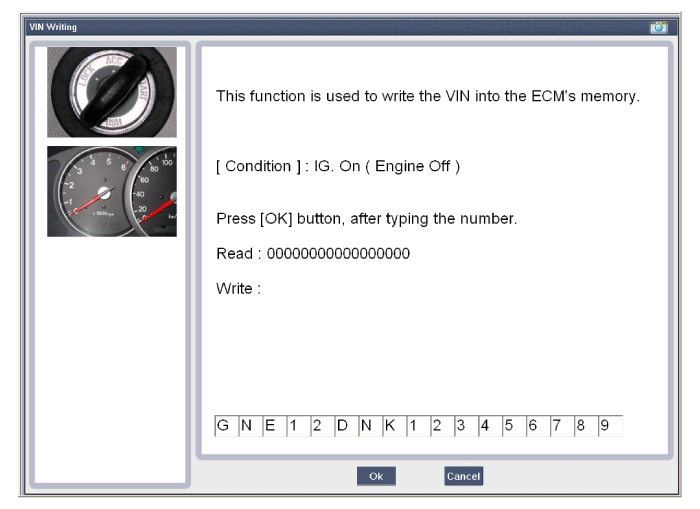

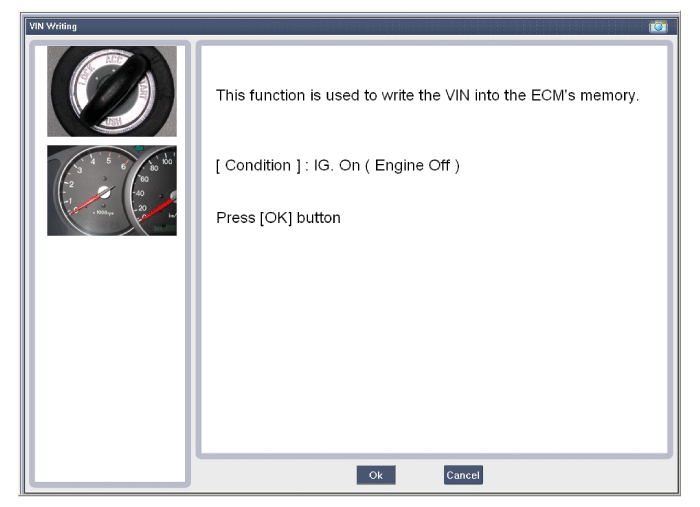

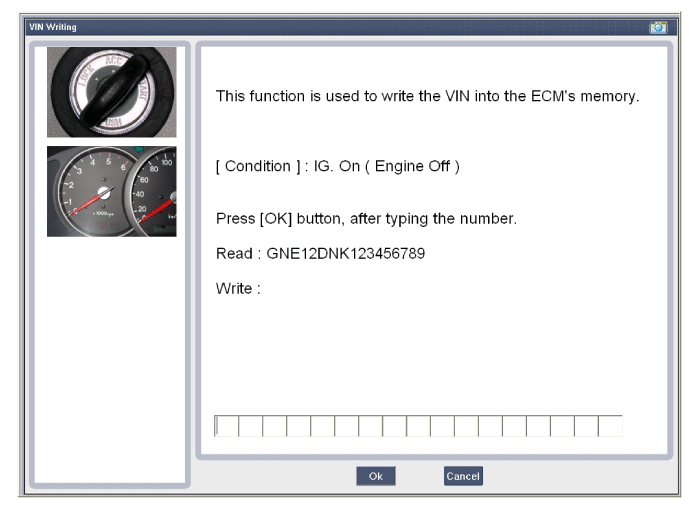

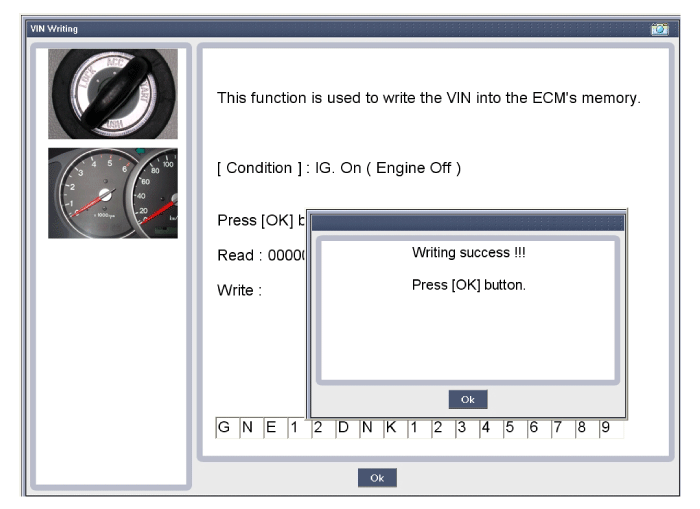

VIN Writing
|
TPMS Receiver Description and Operation
Description
1.
Mode
(1)
Virgin State
A.
The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.
B.
In this state, there is no Auto-Lo ...
