Hyundai Equus: Underdrive Brake Control Solenoid Valve(UD/B_VFS) Schematic Diagrams - Automatic Transmission Control System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Underdrive Brake Control Solenoid Valve(UD/B_VFS) Schematic Diagrams

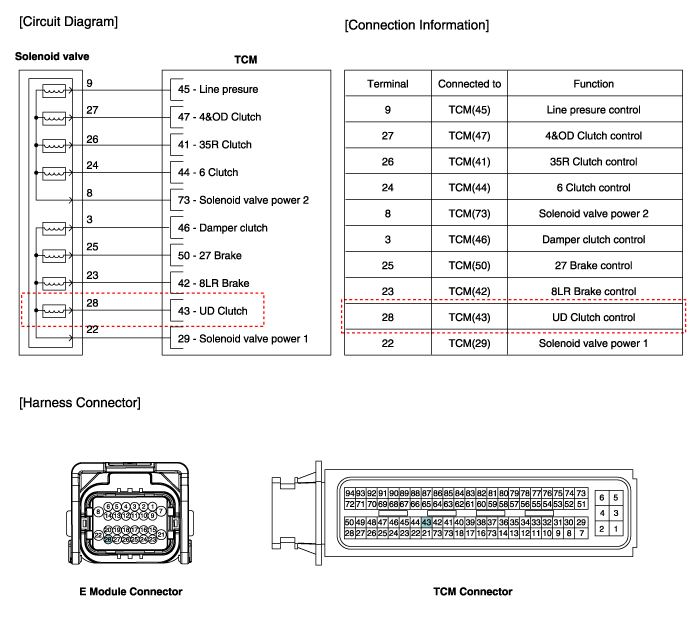

Circuit Diagram

    Underdrive Brake Control Solenoid Valve(UD/B_VFS) Specifications
    Specifications Direct control VFS[UD/C] x Control type : Normal low type Control Pressure kpa (kgf/cmx, psi)0~1569.06 (0~16,0~227.57)Current value(mA)0~1100 Internal resistance ...

    Underdrive Brake Control Solenoid Valve(UD/B_VFS) Repair procedures
    Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the res ...
