Hyundai Equus: Warning message

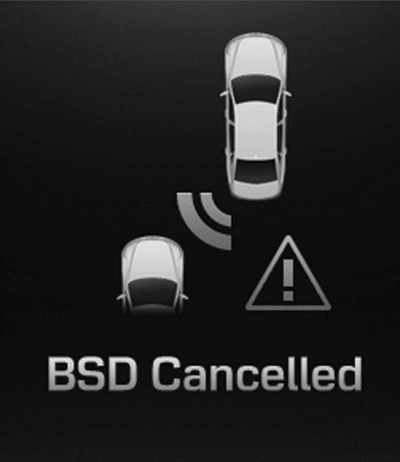

If the detecting sensor performance is low or overheated by foreign substances on the rear bumper, the message will appear to notify the driver.
Also, the message may appear when there is heavy rain or in a large area with nothing to detect. In this time, check the rear bumper. If the system does not activate normally after removing the substances on the rear bumper, consult an authorized EQUUS dealer.
If there is a problem with BSD, the message will appear to notify the driver. In this time, have a vehicle checked by an authorized EQUUS dealer.
Detecting sensor
The sensors are located inside of the rear bumper.
Always keep the rear bumper clean for the system to work properly. ...
Rear cross traffic alert
When your vehicle moves backwards from a parking position, the sensor detects
approaching vehicles to the left or right side direction and gives information to
the driver.
Operating condition ...
