Hyundai Equus: Windshield washers - Wipers & Washers - Features of your vehicle - Hyundai Equus 2009-2024 Owners ManualHyundai Equus: Windshield washers

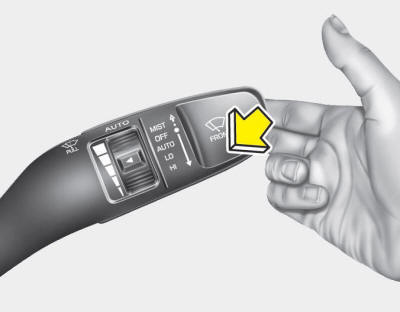

In the OFF position, pull the lever gently toward you to spray washer fluid on


In the OFF position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles.

Use this function when the windshield is dirty.

The spray and wiper operation will continue until you release the lever. If the washer does not work, check the washer fluid level. If the fluid level is not sufficient, you will need to add appropriate non-abrasive windshield washer fluid to the washer reservoir.

The reservoir filler neck is located in the front of the engine compartment on the passenger side.

CAUTION

To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.

WARNING

Do not use the washer in freezing temperatures without first warming the windshield with the defrosters; the washer solution could freeze on contact with the windshield and obscure your vision.

CAUTION

  • To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry.
  • To prevent damage to the wiper blades, do not use gasoline, kerosene, paint thinner, or other solvents on or near them.
  • To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually.
    Windshield wipers
    Operates as follows when the ignition switch is turned ON. MIST : For a single wiping cycle, push the lever upward and release it with the lever in the OFF position. The wipers will operate conti ...

    Interior light
    CAUTION Do not use the interior lights for extended periods when the engine is not running. It may cause battery discharge. WARNING Do not use the interior lights when driving in the dark. Accide ...
