Hyundai Equus: Rheostat Repair procedures - Lighting System - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Rheostat Repair procedures

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body Electrical System / Lighting System / Rheostat Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the lower crash panel and then disconnect the rheostat connector.

3.
Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the lower crash panel (A).
(Refer to Body - "Crash Pad Lower Pannel")
3.

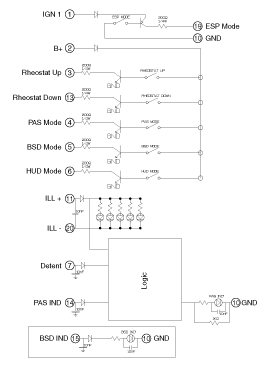

Remove the crash pad switch assembly (A) after loosening the screws.

4.
Remove the rheeostat switch assembly (A) from lower crash panel.

Installation
1.
Install the rheostat switch to the switch assembly.
2.
Install the switch assembly.
3.
Install the lower crash panel.
