Hyundai Equus: Air Spring Components and Components Location - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Air Spring Components and Components Location

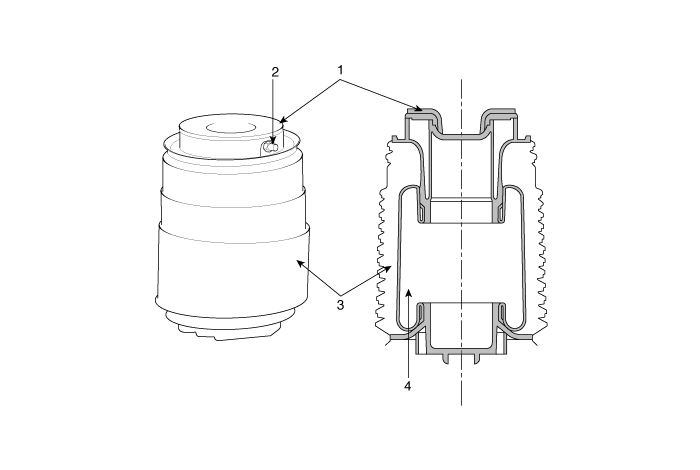

Components

1. Urethane pad
2. Connected to air tube
3. Protector
4. Air spring
